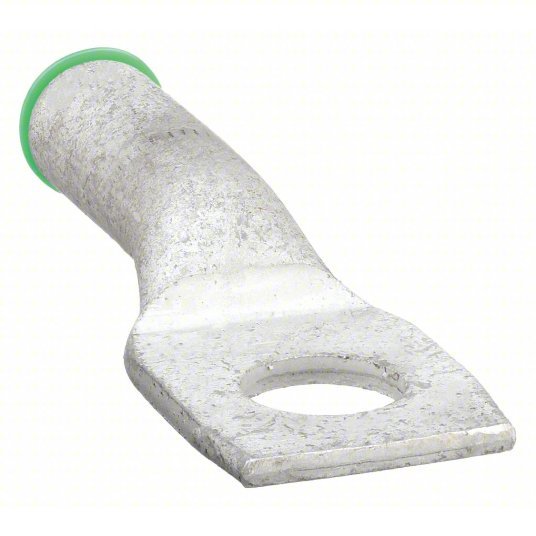

Burndy YA4CA6 One-Hole Lug Compression Connector 4 AWG Max Wire Size, 3/8 in Stud Size, HYLUG - KVM Tools Inc.KV22C417

Burndy YA4CA6 One-Hole Lug Compression Connector 4 AWG Max Wire Size, 3/8 in Stud Size, HYLUG

UPC: 781810556276 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 0.01 lbs

$28.92 - $28.92
$28.92
$28.92 - $28.92
$28.92
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Green, Die Code 375, Tongue Angle Straight, Tongue Width 0.8 in, For Conductor Material Aluminum, Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Material Aluminum
Color Code Green
Peep Hole No
Standards CSA Certified, UL 486A-486B, UL Listed
Item One-Hole Lug Compression Connector
Plate Material Electro Tin
Hole Center to End 0.44 in
Die Code 375
Tongue Style Standard
Hole Center to Center Not Applicable
Termination Style Crimp
Tongue Thickness 0.12 in
Maximum Voltage 35 kV AC
Maximum Operating Temperature 194 Degrees F
Barrel Style Chamfered
For Wire Type Solid, Stranded
Tongue Angle Straight
Contact Finish Tin
RoHS Compliant Yes
For Conductor Material Aluminum, Copper
Special Features Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility
Inspection Hole No
