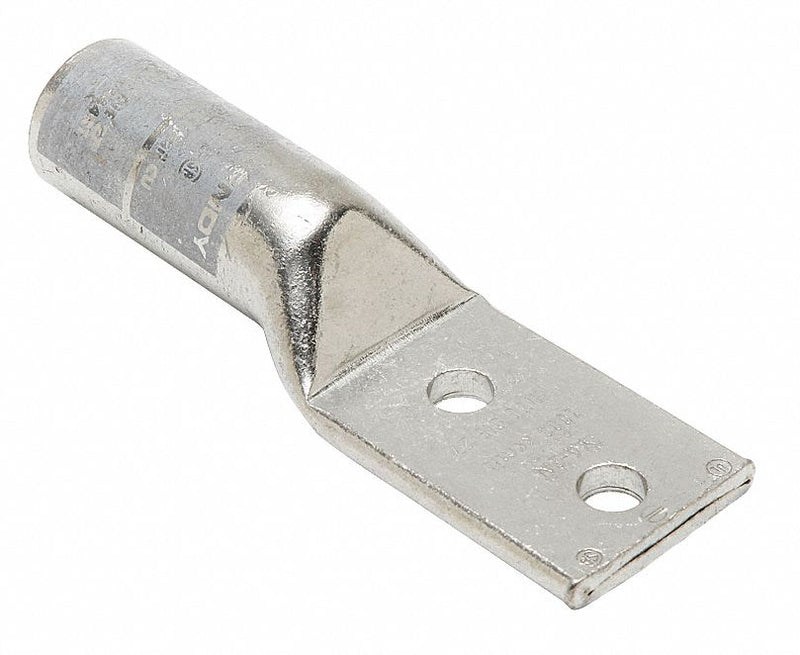

Burndy YA442N Compression Lug, For 1000 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

Burndy YA442N Compression Lug, For 1000 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

UPC: 781810555644 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 1.6 lbs

$221.26 - $221.26
$221.26
$221.26 - $221.26
$221.26

Compression Lug, Barrel Size Long, Color Code White, Die Code 27, Tongue Angle Straight, Tongue Width 2.19 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 1000 kcmil, For Stranded Copper Wire Size - Maximum 1000 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2

For Wire Size 1000 kcmil
For Stud Size 1/2 in
Barrel Size Long
Tongue Width 2.19 in
Length 7.14"
Barrel Length Long
Width 2.19"
Cable Size 1000 kcmil
Overall Width 2.19 in
Overall Length 7.14 in
Length (Straight Wireway) 7.14 in
Tongue Thickness 0.32 in
Hole Size 0.56 in
Barrel Outside Diameter 1.5 in
For Stranded Copper Wire Size - Maximum 1000 kcmil
Tongue Length 1.27 in
Strip Length 3 1/16 in
For Stranded Copper Wire Size - Minimum 1000 kcmil
Dimension - Strip Length inch 3-1/16 in
Conductor - Copper Str Size 1000 kcmil
Dimension - Bolt Size fraction 1/2 in
Dimension - Hole Size mm 14 mm
Dimension - Pad Width inch 2.19 in
Dimension - Stud Size fraction 1 to 2
Dimension - Z inch 0.64 in
Dimension - Hole Size fraction 1 to 2
Conductor - Copper Str Size Range 1000 kcmil
Dimension - Stud Size inch 1/2 in
Dimension - Bolt Size inch 0.5
Dimension - N inch 0.63 in
Dimension - L Length Overall mm 181 mm
Dimension - B Length fraction 3 in
Dimension - Outside Diameter inch 1.50 in
Dimension - Length Overall inch 7.14 in
Dimension - Hole Size inch 0.56 in
Dimension - Bolt Hole Size inch 0.52 in
Dimension - B Length inch 3.00 in
Conductor Size 1000 KCMIL
Wire Rope Length 7.14 in
For Conductor Material Copper
Material Copper
Tongue Angle Straight
Inspection Hole No
Die Code 27
Color Code White
Standards CSA Certified, UL 486A-486B, UL Listed
Tongue Style Standard
Connector Type Long Barrel
Plate Material Electro Tin
Hole Center to End 0.63 in
Hole Center to Center 1.75 in
Lug Compression Connector Type Two-Hole Lug Compression Connector
Peep Hole No
Application For Code Conductor
Barrel Style Chamfered
For Wire Type Stranded
Maximum Operating Temperature 194 Degrees F
Special Features Terminal
Contact Finish Tin
Maximum Voltage 35 kV
RoHS Compliant Yes
Termination Style Crimp
UL Listed Yes
Feature - Barrel Style Chamfered
Certification - CSA Approved Yes
Finish Type Tin-Plated
Physical Attribute - Tongue Type Standard
Industry Standard(s) UL468A-468B
Conductor - Material Copper
Temperature Rating 194
Die Index 27
Type Long Barrel, Tin Plated
Feature - Barrel Type Long
Voltage Rating 35 kV
Rating - Minimum Voltage 600
Physical Attribute - Number of Holes 2
Plating Type Tin
Plated Y
Rating - KVA 35 kV
Trade Name HYLUGâ„¢
Conductor Type CODE
Voltage - Maximum 35000
Physical Attribute - Tongue Angle Straight
Number of Holes 1
Country of Origin United States
