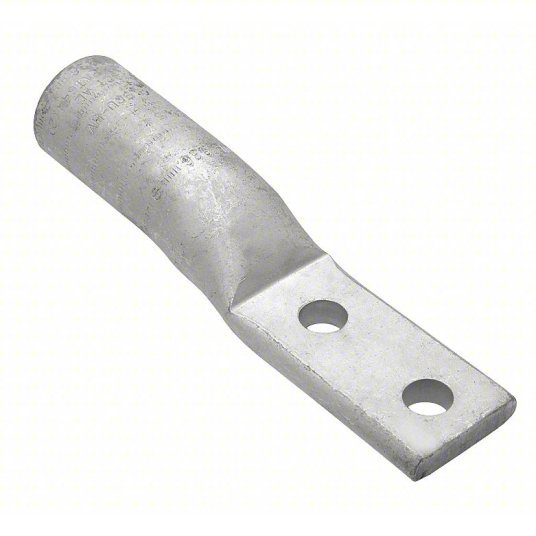

Burndy YA39A5 Two-Hole Lug Compression Connector 700 kcmil Max Wire Size

UPC: 781810556092 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 0.55 lbs

$208.33 - $208.33
$208.33
$208.33 - $208.33
$208.33
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Yellow, Die Code 936, Tongue Angle Straight, Tongue Width 1.62 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 750 kcmil, For Stranded Copper Wire Size - Maximum 750 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Material Aluminum
Color Code Yellow
Item Two-Hole Lug Compression Connector
Standards CSA Certified, UL 486A-486B, UL Listed
Tongue Style Standard
Plate Material Electro Tin
Hole Center to Center 1.75 in
Hole Center to End 0.63 in
Die Code 936
Lug Compression Connector Type Two-Hole Lug Compression Connector
Peep Hole No
Barrel Style Chamfered
For Wire Type Stranded
Contact Finish Tin
Special Features Ensure the Transformer Feeders and Taps are Terminated Properly, Terminal to Bus Connections are Made Using Proper Hardware Resulting in True Torque to Pressure Performance, Compensates for Dissimilar Metal Expansion and Contraction, Dual Rated Compression Terminals
Maximum Operating Temperature 194 Degrees F
Tongue Angle Straight
Tongue Thickness 0.43 in
Maximum Voltage 35 kV AC
RoHS Compliant Yes
For Conductor Material Aluminum, Copper
Termination Style Crimp
Inspection Hole No
