Burndy YA34A3 Two-Hole Lug Compression Connector 500 kcmil Max Wire Size, 1/2 in Stud Size, 2 5/8 in Strip Lg - KVM Tools Inc.KV22C398

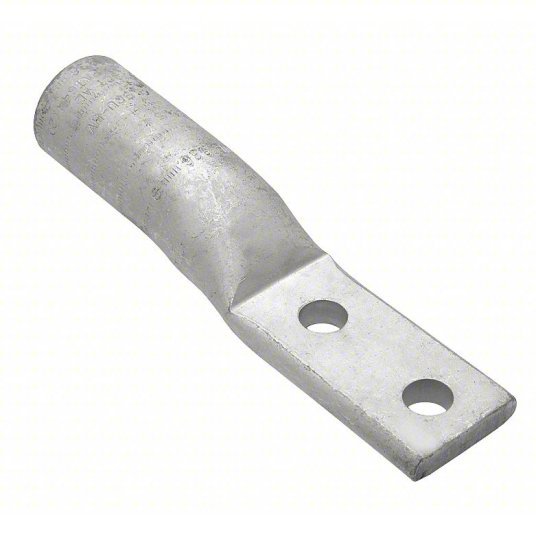

Burndy YA34A3 Two-Hole Lug Compression Connector 500 kcmil Max Wire Size, 1/2 in Stud Size, 2 5/8 in Strip Lg

UPC: 781810556085 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Mexico | Shipping Weight: 0.5 lbs

$151.12 - $151.12
$151.12
$151.12 - $151.12
$151.12
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Pink, Die Code 300, Tongue Angle Straight, Tongue Width 1.62 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Material Aluminum
Color Code Pink
Hole Center to Center 1.75 in
Plate Material Electro Tin
Item Two-Hole Lug Compression Connector
Hole Center to End 0.63 in
Lug Compression Connector Type Two-Hole Lug Compression Connector
Standards CSA Certified, UL 486A-486B, UL Listed
Peep Hole No
Tongue Style Standard
Die Code 300
Tongue Thickness 0.46 in
Contact Finish Tin
For Wire Type Stranded
Maximum Voltage 35 kV AC
Maximum Operating Temperature 194 Degrees F
Tongue Angle Straight
RoHS Compliant Yes
Termination Style Crimp
Inspection Hole No
For Conductor Material Aluminum, Copper
Barrel Style Chamfered
