Burndy YA2CA3 One-Hole Lug Compression Connector 2 AWG Max Wire Size, 3/8 in Stud Size, HYLUG - KVM Tools Inc.KV22C410

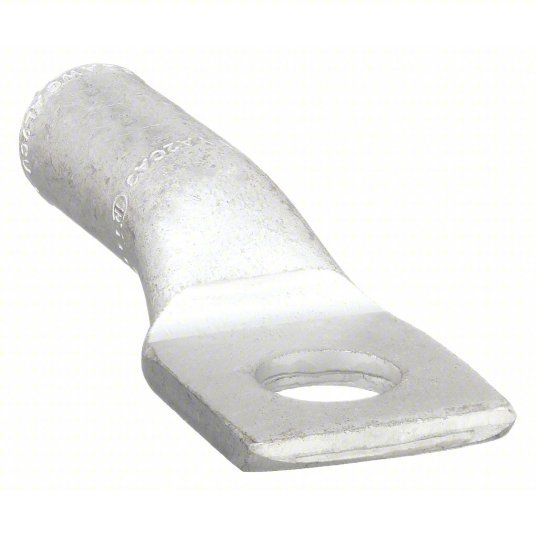

Burndy YA2CA3 One-Hole Lug Compression Connector 2 AWG Max Wire Size, 3/8 in Stud Size, HYLUG

UPC: 781810556191 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 0.01 lbs

$23.92 - $23.92
$23.92
$23.92 - $23.92
$23.92
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Pink, Die Code 348, Tongue Angle Straight, Tongue Width 0.88 in, For Conductor Material Aluminum, Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2 AWG, For Stranded Copper Wire Size - Maximum 2 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Connector Type Straight Barrel
Material Aluminum
Color Code Pink
Peep Hole No
Plate Material Electro Tin
Die Code 348
Tongue Style Standard
Hole Center to End 0.44 in
Standards CSA Certified, UL 486A-486B, UL Listed
Item One-Hole Lug Compression Connector
Hole Center to Center Not Applicable
RoHS Compliant Yes
For Wire Type Solid, Stranded
Tongue Angle Straight
Inspection Hole No
Special Features Dual-Rated and Designed for Use on Both Aluminum and Copper Conductors, Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility
Termination Style Crimp
Maximum Operating Temperature 194 Degrees F
Tongue Thickness 0.16 in
Maximum Voltage 35 kV AC
Barrel Style Chamfered
For Conductor Material Aluminum, Copper
Contact Finish Tin
