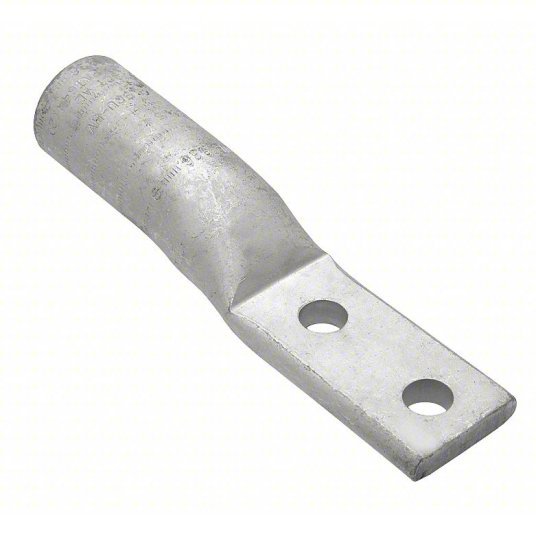

Burndy YA26A3 Two-Hole Lug Compression Connector 2/0 AWG Max Wire Size, 1/2 in Stud Size, 1 3/8 in Strip Lg

UPC: 781810556283 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: | Shipping Weight:

$44.26 - $44.26
$44.26
$44.26 - $44.26
$44.26
Two-Hole Lug Compression Connector, Barrel Size Standard, Color Code Olive, Die Code 297, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Connector Type Straight Barrel
Material Aluminum
Color Code Olive
Standards CSA Certified, UL 486A-486B, UL Listed
Hole Center to Center 1.75 in
Die Code 297
Peep Hole No
Lug Compression Connector Type Two-Hole Lug Compression Connector
Hole Center to End 0.63 in
Item Two-Hole Lug Compression Connector
Plate Material Electro Tin
Tongue Style Standard
RoHS Compliant Yes
Inspection Hole No
Barrel Style Chamfered
For Wire Type Stranded
Maximum Operating Temperature 194 Degrees F
Maximum Voltage 35 kV AC
Tongue Thickness 0.2 in
Contact Finish Tin
Termination Style Crimp
For Conductor Material Aluminum, Copper
Special Features Ensure the Transformer Feeders and Taps are Terminated Properly, Terminal to Bus Connections are Made Using Proper Hardware Resulting in True Torque to Pressure Performance, Compensates for Dissimilar Metal Expansion and Contraction, Dual Rated Compression Terminals
Tongue Angle Straight
