Burndy YA26A1 One-Hole Lug Compression Connector 2/0 AWG Max Wire Size, 1/2 in Stud Size, HYLUG - KVM Tools Inc.KV22C403

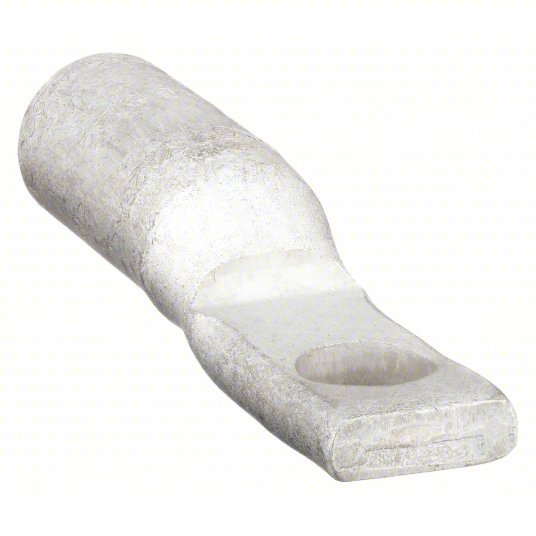

Burndy YA26A1 One-Hole Lug Compression Connector 2/0 AWG Max Wire Size, 1/2 in Stud Size, HYLUG

UPC: 781810556122 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: United States | Shipping Weight: 0.05 lbs

$42.85 - $42.85
$42.85
$42.85 - $42.85
$42.85
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Olive, Die Code 297, Tongue Angle Straight, Tongue Width 1.03 in, For Conductor Material Aluminum, Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Connector Type Straight Barrel
Material Aluminum
Color Code Olive
Plate Material Electro Tin
Hole Center to End 0.63 in
Die Code 297
Tongue Style Standard
Standards CSA Certified, UL 486A-486B, UL Listed
Item One-Hole Lug Compression Connector
Peep Hole No
Hole Center to Center Not Applicable
Maximum Voltage 35 kV AC
For Conductor Material Aluminum, Copper
For Wire Type Solid, Stranded
Tongue Thickness 0.2 in
Barrel Style Chamfered
Tongue Angle Straight
RoHS Compliant Yes
Termination Style Crimp
Special Features Durable Long Lasting Corrosion Resistance, High-Conductivity, Low Resistance and Ductility, Reliable Connection
Inspection Hole No
Contact Finish Tin
Maximum Operating Temperature 194 Degrees F
