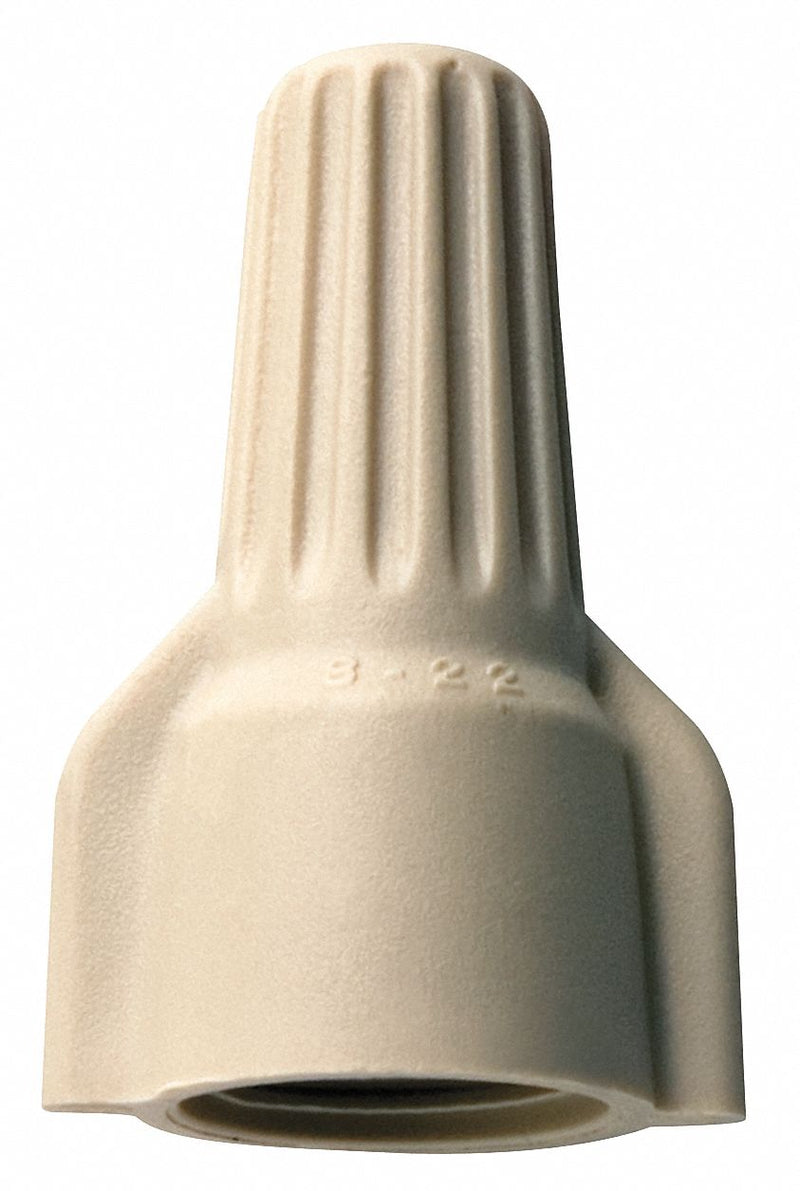

Buchanan WT41-1 Twist-On Wire Connectors, Tan, Wire Sizes 14 AWG – 10 AWG, 600 V, 100, PK

Buchanan WT41-1 Twist-On Wire Connectors, Tan, Wire Sizes 14 AWG – 10 AWG, 600 V, 100, PK

UPC: 781789967660 | Harmonization / Schedule B : 8536.69.8000

Country of Origin: Canada | Shipping Weight: 0.4 lbs

$22.44 - $22.44
$22.44
$22.44 - $22.44
$22.44

Twist-On Wire Connectors, Color Tan, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 20 AWG, Maximum Wire Combination (3) 10 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Polypropylene, Maximum Single Wire Size 10 AWG, Minimum Single Wire Size 14 AWG

Maximum Wire Size 10 AWG
Minimum Wire Size 22 AWG
Height 0.73 in
Width 0.52 in
Overall Width 0.52 in
For Minimum Wire Size - Solid 22 AWG
Minimum Single Wire Size 14 AWG
Maximum Single Wire Size 10 AWG
Overall Height 0.73 in
Type Twist-On
Color Tan
Insulation Material Polypropylene
Maximum Voltage 600 V
Minimum Wire Combination (2) 20 AWG
Maximum Wire Combination (3) 10 AWG
Maximum Operating Temperature 221 Degrees F
UL 94 Flammability Rating V-2
RoHS Compliant Yes
Series WT41
Application General Purpose
Standards CSA Certified, UL Listed
Special Features Contoured Wing Design Provides Enhanced Torque, Expanding, Square-Wire Spring Creates Secure Connections, Wide, Deep Skirt Opening Accommodates a Variety of Wire Combinations
Maximum Conductors 6
For Conductor Material Copper
Material Steel
Termination Style Twist-On
Contact Material Steel
Contact Finish Zinc
Connector Type WT41
Wire Connector Style Wing
Country of Origin Canada
