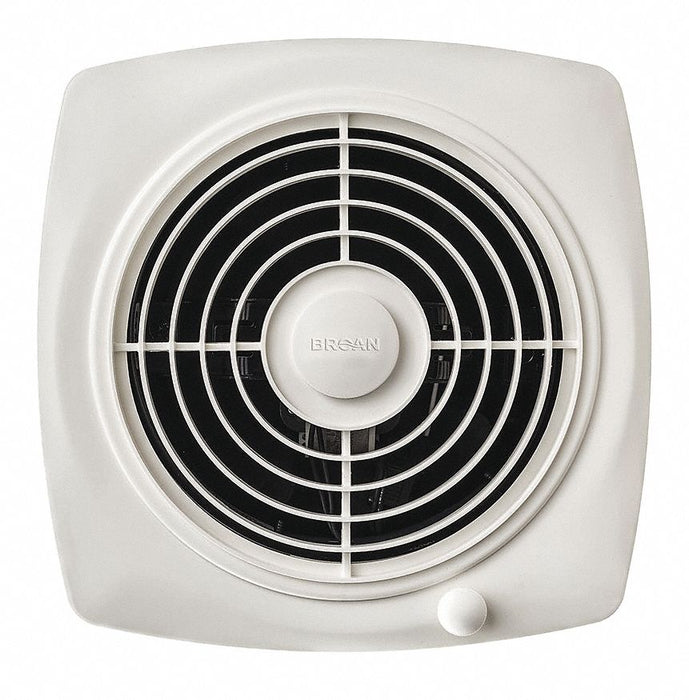

Broan 509S Exhaust Fan, 180 cfm, 195 sq ft Coverage, 8 in Duct, 9 sones, For 4 1/2 in to 9 1/2 in Wall Thick

Broan 509S Exhaust Fan, 180 cfm, 195 sq ft Coverage, 8 in Duct, 9 sones, For 4 1/2 in to 9 1/2 in Wall Thick

UPC: 026715022908 | Harmonization / Schedule B : 8414.90.1080

Country of Origin: United States | Shipping Weight: 12.5 lbs

$220.44 - $220.44
$220.44
$220.44 - $220.44
$220.44

Exhaust Fan, Control Type Rotary Dial, Duct Diameter 8 in, Exhaust Airflow @ 0.000 in SP 180 cfm, For Maximum Wall Thickness 9 1/2 in, For Minimum Wall Thickness 4 1/2 in, Housing Material Steel, Housing Finish Galvanized, Includes Backdraft Damper, Rotary On-Off Switch, Weather Hood, Maximum Airflow 200 cfm, Maximum Coverage Area 195 sq ft, Maximum Noise Level 9 sones

Type Through-the-Wall
Voltage 120 V AC
CFM @ 0.000-In. SP 180 cfm
Grille Color White
Includes Backdraft Damper, Rotary On-Off Switch, Weather Hood
Motor RPM 1,925 RPM
Amps 1.5 A
Sones HVI 6.5
Housing Material Steel
Grille Material Polymeric
Hz 60
Standards HVI(R) Certified
Green Certification or Other Recognition HVI(R) Certified
Frequency 60 Hz
Ventilation Type Exhaust
Wattage 89.2 W
Housing Finish Galvanized
Full Load Current 1.8 A
Includes Motor Yes
Nameplate Voltage 120V AC
Motor Speed 1,925 RPM
Maximum Airflow 200 cfm
Vent Design Ductless
Maximum Coverage Area 195 sq ft
Maximum Noise Level 9 sones
Number of Fans 1
Thermal Protection Yes
Exhaust Airflow @ 0.000 in SP 180 cfm
Control Type Rotary Dial
Duct Shape Round
Phase 1
Includes Grill Yes
Country of Origin United States
