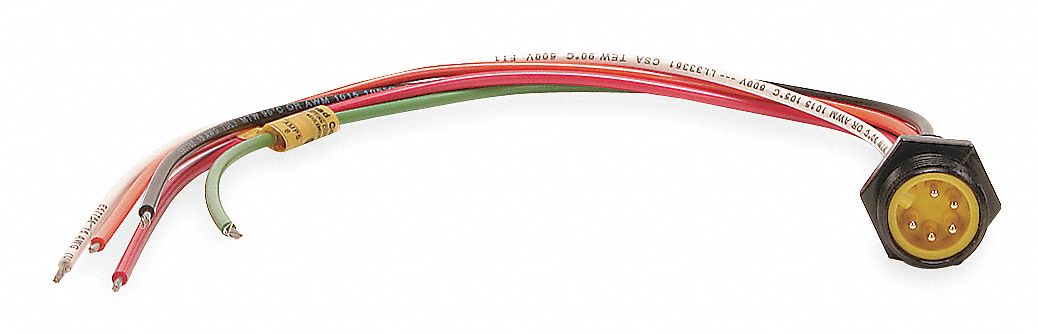

Brad Harrison 1R5006A20A120 Mini-Change 5 Pin Male Receptacle

Brad Harrison 1R5006A20A120 Mini-Change Receptacle, 5 Pin Male, 7/8-16 Coupling, 600V 8A, IP68, 1 ft Wire

UPC: | Harmonization / Schedule B : 8536.69.4040

Country of Origin: Mexico | Shipping Weight: 0.5 lbs

$31.86 - $31.86
$31.86
$31.86 - $31.86
$31.86

External Thread Receptacle, Number of Pins 5, Plug or Connector Type Male, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 8 A, Wire Size 16 AWG, Threads 7/8-16, Face Dia. 0.55 in, Keyway Single, Body Material Die-Cast Zinc, Color Yellow, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed

Product Type External Thread Receptacle
End 1 Number of Pins 5
Cable Jacket Material PVC
Cable Jacket Color Gray
IP Rating IP68
Max. Amps 8 A
Maximum Operating Temperature 221 Degrees F
Body Material Die-Cast Zinc
Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Plug End Straight
Max. Voltage 600V AC/DC
NEMA Rating 6P
Color White, Red, Green, Orange, Black
Plug or Connector Type Male
Keyway Single
Threads 7/8-16
Features Gold Over Nickel-Plated Contacts
Temp. Range -4 Degrees to 221 Degrees F
Voltage - Maximum 600V AC/DC
Orientation Straight
Temperature Range - Operating -20°C to +105°C
Current - Maximum per Contact 8.0A
Poles 5
Wire/Cable Type UL 1015
Material - Component Zinc Die-Cast with Black Epoxy
Gender Male
Coupling Type External Thread
UL E152210
CSA LR6837
AC Voltage Rating - Maximum 600 V
NEMA Enclosure Rating 6
Series 130013
Number of Keyways 1
DC Voltage Rating - Maximum 600 V
Operating Temperature - Minimum -4 Degrees F
Connection Color Black
Mounting Thread Type NPT
Mounting Style Panel
Country of Origin Mexico
