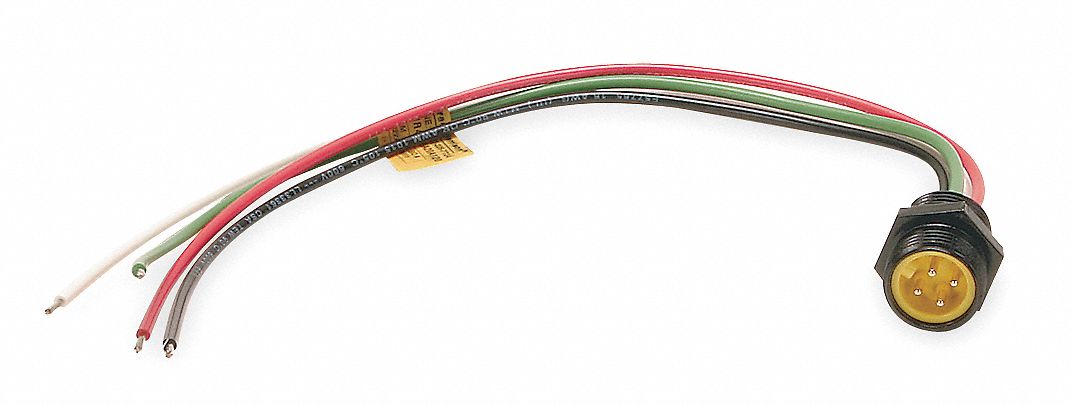

Brad Harrison 1R4006A20A120 Mini-Change 4 Pin Male Receptacle

Brad Harrison 1R4006A20A120 Mini-Change Receptacle, 4 Pin Male, 7/8-16 Coupling, 600V 10A, IP67, 1 ft Wire

UPC: | Harmonization / Schedule B : 8536.69.4040

Country of Origin: Mexico | Shipping Weight: 0.5 lbs

$34.46 - $34.46
$34.46
$34.46 - $34.46
$34.46

External Thread Receptacle, Number of Pins 4, Plug or Connector Type Male, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 10 A, Wire Size 16 AWG, Threads 7/8-16, Face Dia. 0.55 in, Keyway Single, Body Material Die-Cast Zinc, Color Yellow, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed

Product Type External Thread Receptacle
End 1 Number of Pins 4
Cable Jacket Material PVC
Cable Jacket Color Black
IP Rating IP67, IP68
Max. Amps 10 A
Maximum Operating Temperature 221 Degrees F
Plug End Straight
Max. Voltage 600V AC/DC
Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Body Material Die-Cast Zinc
Plug or Connector Type Male
Keyway Single
NEMA Rating 6P
Threads 7/8-16
Color Black, White, Red, Green
Features Gold Over Nickel-Plated Contacts
Temp. Range -4 Degrees to 221 Degrees F
Poles 4
CSA LR6837
UL E152210
Orientation Straight
Voltage - Maximum 600V AC/DC
Gender Male
Material - Component Zinc Die-Cast with Black Epoxy
Temperature Range - Operating -20°C to +105°C
Coupling Type External Thread
Current - Maximum per Contact 10.0A
Wire/Cable Type UL 1015
NEMA Enclosure Rating 6
Number of Keyways 1
Series 130013
AC Voltage Rating - Maximum 600 V
Operating Temperature - Minimum -4 Degrees F
Mounting Style Panel
DC Voltage Rating - Maximum 600 V
Mounting Thread Type NPT
Connection Color Black
Country of Origin Mexico
