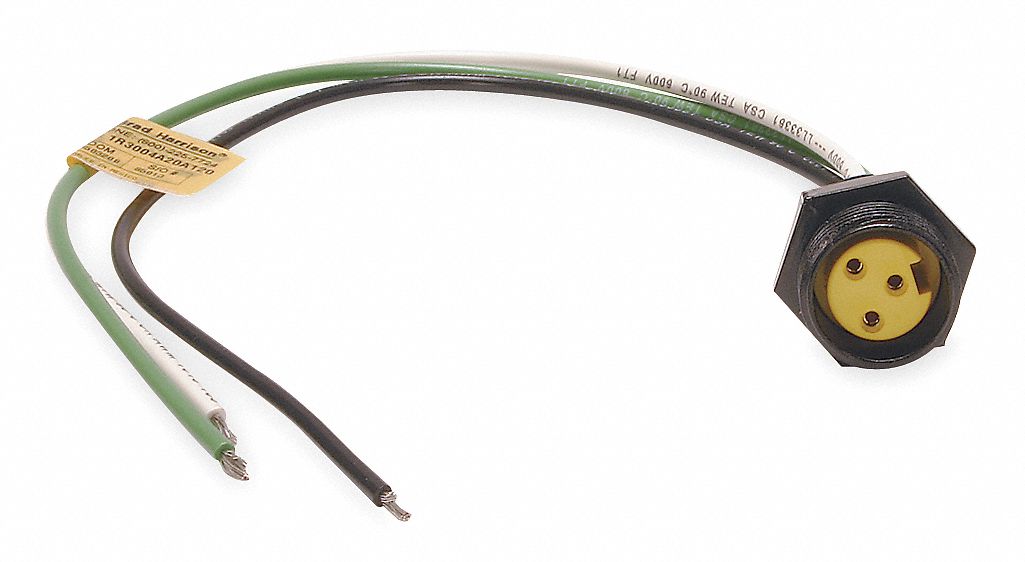

Brad Harrison 1R3004A20A120 Mini-Change 3 Pin Female Receptacle

Brad Harrison 1R3004A20A120 Mini-Change Receptacle, 3 Pin Female, 1/2-14 NPT Mount, 600V 13A, IP67, 1 ft Wire

UPC: | Harmonization / Schedule B : 8536.69.4040

Country of Origin: Mexico | Shipping Weight: 0.5 lbs

$33.36 - $33.36
$33.36
$33.36 - $33.36
$33.36

External Thread Receptacle, Number of Pins 3, Plug or Connector Type Female, Straight Plug End, Max. Voltage 600V AC/DC, Max. Current 13 A, Wire Size 16 AWG, Threads 7/8-16, Face Dia. 0.55 in, Keyway Single, Body Material Die-Cast Zinc, Color Yellow, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed

Product Type External Thread Receptacle
End 1 Number of Pins 3
Cable Jacket Color Black
IP Rating IP67, IP68
Max. Amps 13 A
Maximum Operating Temperature 221 Degrees F
Keyway Single
Threads 7/8-16
Plug or Connector Type Female
Plug End Straight
Color Green, Black, White
NEMA Rating 6P
Max. Voltage 600V AC/DC
Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Body Material Die-Cast Zinc
Temp. Range 32 Degrees to 140 Degrees F
Features Gold Over Nickel-Plated Contacts
UL E152210
Voltage - Maximum 600V AC/DC
Orientation Straight
CSA LR6837
Material - Component Zinc Die-Cast with Black Epoxy
Current - Maximum per Contact 13.0A
Gender Female
Coupling Type External Thread
Poles 3
Wire/Cable Type UL 1015
Temperature Range - Operating -20°C to +105°C
Series 130013
Operating Temperature - Minimum -4 Degrees F
Number of Keyways 1
DC Voltage Rating - Maximum 600 V
Mounting Style Panel
AC Voltage Rating - Maximum 600 V
Connection Color Black
NEMA Enclosure Rating 6
Mounting Thread Type NPT
Country of Origin Mexico
