Boston Gear NJ18 B Spur Gear Inch, Pitch 6, 18 Teeth, 1 in Bore Dia, 14.5° Pressure Angle, Steel, 3 in Pitch Dia

Name: Boston Gear NJ18 B Spur Gear Inch, Pitch 6, 18 Teeth, 1 in Bore Dia, 14.5° Pressure Angle, Steel, 3 in Pitch Dia
Brand: Boston Gear
Price: 250.85 USD
Availability: InStock

UPC: 781711098400 | Harmonization / Schedule B : 8483.40.9000

Country of Origin: United States | Shipping Weight: 3.6 lbs

$250.85 - $250.85

$250.85

$250.85 - $250.85

$250.85

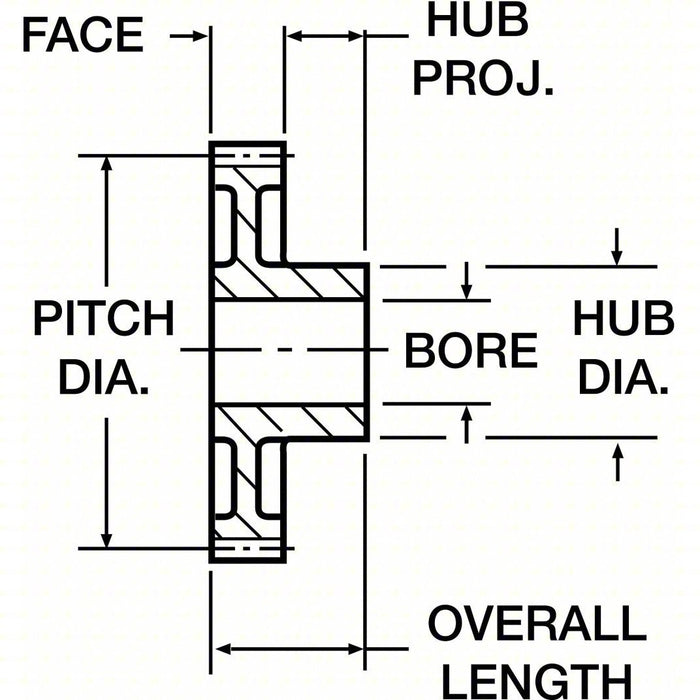

Spur Gear, Bore Diameter 1 in, Hub Diameter 2.46 in, Hub Projection 0.88 in, Face Width 1 1/2 in, Pitch Diameter 3 in, Material Steel, Pressure Angle 14.5 Degrees , Compatible Gear Rack Manufacturer Part Number L520-6, L521-6, Diametral Pitch 6, Keyway No

Pitch	6
Number of Teeth	18
Material	Steel
Agency Compliance	AGMA
Pressure Angle (Deg.)	14.5
For Use With	L520-6, L521-6
Hub Projection (In.)	0.88 in
Keyway	N
Setscrew	Not Included
Function	Transmitting Motion and Power Between Parallel Shafts, Minimizes Backlash to Perform Smooth and Quiet Operation, Close Concentricity Between Bore, Pitch Diameter and Outside Diameter Facilitates Reboring Modifications
Standards	AGMA
Pressure Angle	14.5 Degrees
Gear Material & Finish	Steel
Compatible Gear Rack Manufacturer Part Number	L520-6, L521-6
Diametral Pitch	6
Hub Projection	0.88 in
Hub Design	Hub without Set Screw
System of Measurement	Inch
