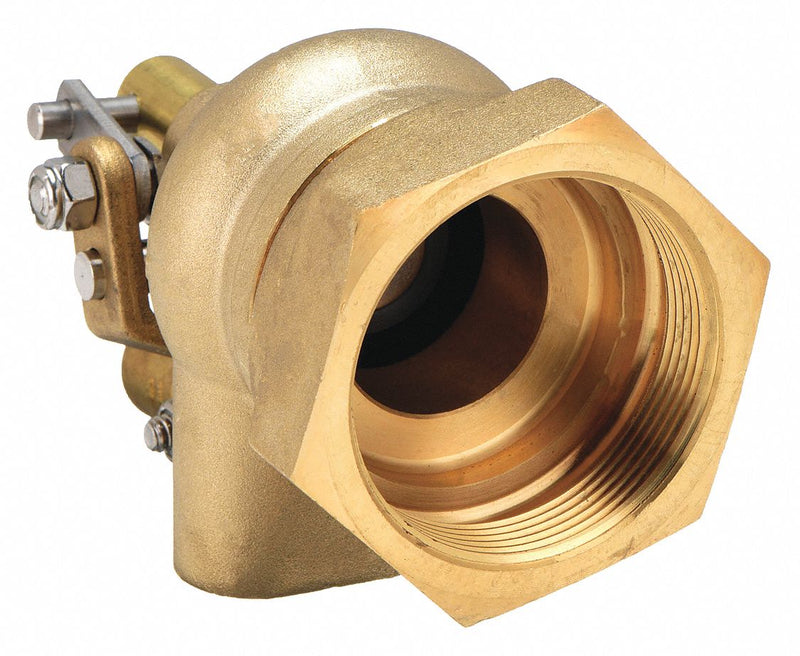

Bob R605T-1-1/4 Float Valve, Angle Brass Body, 1-1/4 in FNPT, Horizontal Piping

Bob R605T-1-1/4 Float Valve, Angle Brass Body, 1-1/4 in FNPT, Horizontal Piping

UPC: | Harmonization / Schedule B : 8481.20.0040

Country of Origin: United States | Shipping Weight: 2.96 lbs

$171.49 - $171.49
$171.49
$171.49 - $171.49
$171.49

Float Valve, Mounting Horizontal Piping, Size 1 1/4 in, Connection Type FNPT, Rod Thread 3/8 In.-16, Rod Length Not Applicable, Rod Material Not Applicable, Body Material Brass, Valve Flow - Pressure (1) 65 psi, Valve Flow - Flow (1) 152 gpm, Valve Flow - Pressure (2) 85 psi, Valve Flow - Flow (2) 180 gpm, Max. Pressure 115 psi, Max. Temp. 180 Degrees F, Valve Material Brass, Float Material Not Applicable

Pipe Size 1 1/4"
Size 1 1/4"
Nominal Valve Size 1 1/4 in
Connection Size - Side 1 1 1/4 in
Connection Size - Side 2 1 1/4 in
Connection Type FNPT
Body Material Brass
Valve Flow - Flow (2) 180 gpm
Max. Pressure 115 psi
Mounting Horizontal Piping
Max. Temp. 180 Degrees F
Valve Material Brass
Valve Flow - Flow (1) 152 gpm
Valve Flow - Pressure (1) 65 psi
Rod Thread 3/8 in -16
Valve Flow - Pressure (2) 85 psi
Flow Rate 112 gpm @ 35 psi, 152 gpm @ 65 psi, 180 gpm @ 85 psi
Includes Float and Rod No Float and Rod
Manufacturer Warranty 1 yr
Seal Material Buna-N
Operating Temperature - Maximum 180 Degrees F
For Media Water
Seat Style Single Seated
Connection Gender - Side 1 Female
Maximum Pressure - Operating 115 psi
Arm Adjustability Adjustable
Valve Body Style Angle
Connection Type - Side 1 NPT
Operating Temperature - Minimum 33 Degrees F
Valve Series R605T High Turbo
Country of Origin United States
