Blackburn BTC3104 Mechanical Conn, Offset Tang, 3/0 to 4 AWG - KVM Tools Inc.KV3LN75

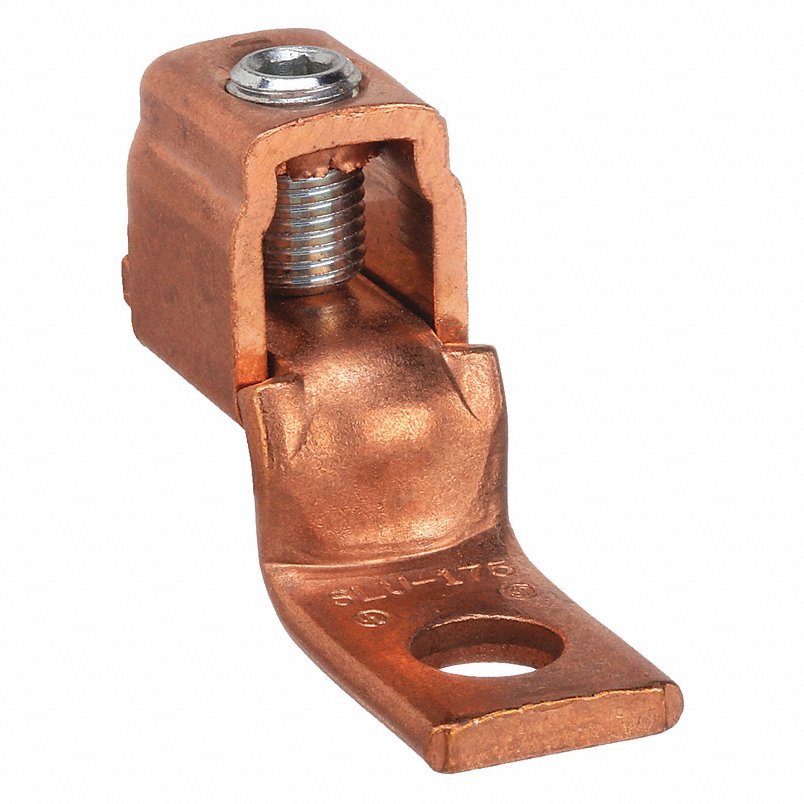

Blackburn BTC3104 Mechanical Conn, Offset Tang, 3/0 to 4 AWG

UPC: 783786611348 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.14 lbs

$26.00 - $26.00
$26.00
$26.00 - $26.00
$26.00

Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, For Stud Size 13/32 in, Head Style Hex, Number of Holes 1, Hole Diameter 0.41 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 1.03 in, Tongue Width 0.75 in, Tongue Thickness 0.13 in, Tongue Offset Height 0.2 in

Item Mechanical Connector
Connector Type Offset Tang
No. of Conductors 1
Material Electrolytic Copper
Head Style Hex
Screw Material Steel
Standards UL Listed, UL486A/B
No. of Holes 1
Body Material Copper
For Conductor Material Copper
Number of Terminations 1
Tongue Thickness 0.13 in
Connection Orientation Offset Tang
Screw Finish Zinc Plated
Maximum Operating Temperature 194 Degrees F
UL Standard UL 486A-486B
Hole Spacing Not Applicable
Number of Conductors 1
Special Features Notched V-Bottom Collar, Uniquely Designed Pressure Bar
Maximum Voltage 1,000 V
Product Type Copper Connectors
Product Name ELEC CONNECTOR <1000V
Special Functions Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal.
Package Quantity 1
