Blackburn ADR21 Mechanical Connector 1 Conductors, Aluminum, 1/4 in Stud Size, UL 486A-486B - KVM Tools Inc.KV3LN35

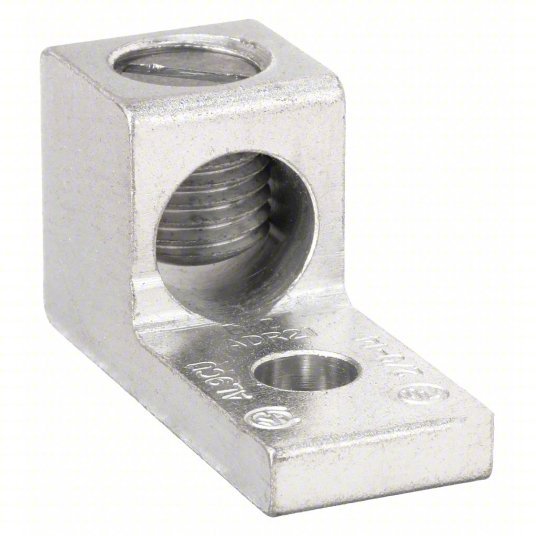

Blackburn ADR21 Mechanical Connector 1 Conductors, Aluminum, 1/4 in Stud Size, UL 486A-486B

UPC: 783786610082 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.01 lbs

$3.25 - $3.25
$3.25
$3.25 - $3.25
$3.25
Mechanical Connector, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, For Stud Size 1/4 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.25 in, Hole Spacing Not Applicable, Body Material Aluminum, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.84 in, Tongue Width 0.63 in, Tongue Thickness 0.19 in
Connector Type Dual Rated Lug
No. of Conductors 1
Insulation Material None
Material Aluminum
Head Style Slotted
Standards UL Listed, UL486A/B
No. of Holes 1
Body Material Aluminum
Contact Finish Tin
For Conductor Material Aluminum, Copper
Number of Conductors 1
Number of Terminations 1
Tongue Thickness 0.19 in
Hole Spacing Not Applicable
Maximum Voltage 1,000 V
UL Standard UL 486A-486B
Connection Orientation Dual Rated Lug
Maximum Operating Temperature 194 Degrees F
Special Features Easy Installation
Product Type Dual-Rated Mechanical Connector
Spacing 1/4 in
Product Name BLACKBURN MECHANICAL
Surface Finishing Tin Plated
Special Functions Easy Installation - no special tools required.
Standard UL E9809
Mounting Hole Spacing 1/4 in
