Blackburn 6H Split-Bolt Connector 8 AWG – 6 AWG, Bronze, Hex Head - KVM Tools Inc.KV3LN18

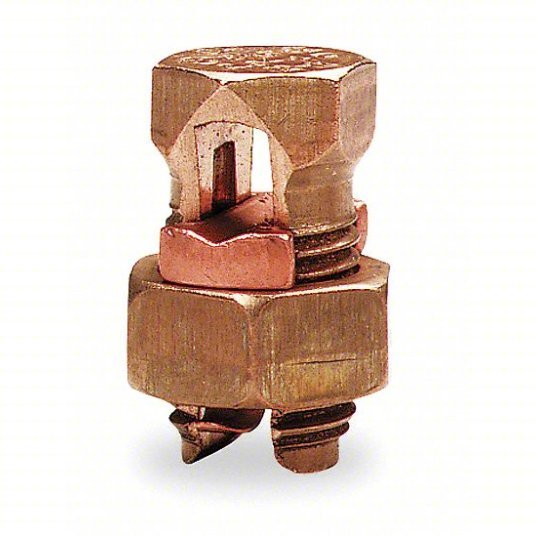

Blackburn 6H Split-Bolt Connector 8 AWG – 6 AWG, Bronze, Hex Head

UPC: 783786200047 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Mexico | Shipping Weight: 0.1 lbs

$9.73 - $9.73
$9.73
$9.73 - $9.73
$9.73
Split-Bolt Connector, Body Finish Plain, Body Material Bronze, For Conductor Material Copper, For Minimum Equal Wire Size 8 AWG, For Maximum Equal Wire Size 6 AWG, For Minimum Run Wire Size (2) 8 AWG, For Maximum Run Wire Size (2) 6 AWG, For Minimum Tap Wire Size 8 AWG, For Maximum Tap Wire Size 6 AWG, Head Style Hex Head, Head Width 0.47 in, Hex Nut Size 0.656 in, Maximum Voltage 600 V, Torque 135 in-lb, Compatible Manufacturer Model Number 6H, Overall Length 0.97 in, Overall Width 0.47 in
Connects Copper to Copper Wire
Wire Range w/Equal Main and Tap (AWG) 8 sol to 6 sol
Min. Tap Conductor w/1 Max. Main (AWG) 14 sol
Material Bronze Alloy
Pressure Bar Material Copper
Standards CSA Certified, UL E9809
Head Style Hex Head
Compatible Manufacturer Model Number 6H
Special Features Corrosion Resistant, High Strength
Body Material Bronze
Minimum Tap Conductor w/1 Maximum Main (AWG) 14 sol
Torque 135 in-lb
Wire Range with Equal Main and Tap 8 AWG - 6 AWG
Body Finish Plain
Maximum Voltage 600 V
For Conductor Material Copper
RoHS Compliant Yes
Suitable for Round conductor
Type Split-Bolt
Application Splicing, tapping or terminating conductors in power and grounding electrical connection.
Color Metallic
Standard UL E9809
Features Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design.; Splicing, tapping or terminating conductors in power and grounding electrical connection
