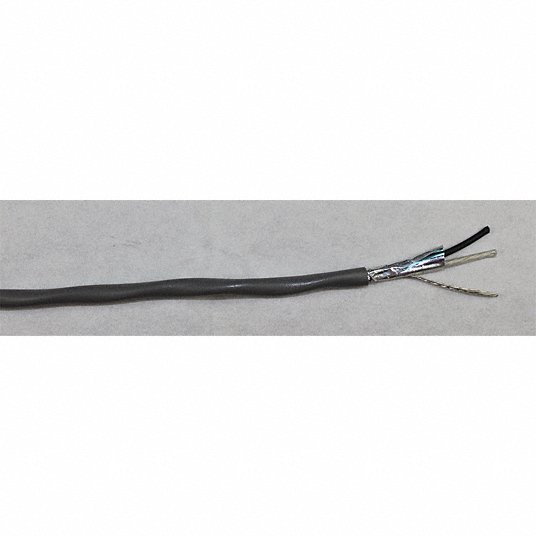

Belden 8762 0601000 Multi-Conductor, 20 AWG, Silver, 0.204 in. - KVM Tools Inc.KV48KR35

Belden 8762 0601000 Multi-Conductor, 20 AWG, Silver, 0.204 in.

UPC: 612825215370 | Harmonization / Schedule B : 8544.49.3080

Country of Origin: Mexico | Shipping Weight: 24 lbs

$2,604.33 - $2,604.33
$2,604.33
$2,604.33 - $2,604.33
$2,604.33
Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 28, Conductor Gauge 20 AWG, Insulation Material PE, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 1


UPC 612825215370
Item Communication Cable
Fire Rating - Data Cable Commercial
Number of Conductors 2
Shielded Shielded
Total Number of Conductors - Data Cable 2 (1 Pair)
Solid / Stranded Stranded
Jacket Color Chrome
Application - Communication Cable Audio Systems, Control Systems, Instrumentation Systems
Jacket Material PVC
Suggested Voltage Rating - Data Cable 300 V
Standards AWM 2092, CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 UL Loading, IEC 60332-1-2
Package Type - Data Cable Reel in a Box
Insulation Material PE
NEC Article and Type 800 CM
Application Computer Systems, Audio Systems, Instrumentation Systems
Plenum / Riser Rated Riser Rated
Cable Sub-Category Multi-Conductor
NEC Article 800
Shielded / Unshielded Shielded
Jacket Material - Wire and Cable PVC
Shielding Material Foil
Temp. Range -40 Degrees to 140 Degrees F
Package Type Reel in a Box
Maximum Capacitance 27.0 pf/ft (Nominal Capacitance Conductor to Conductor); 49.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Minimum Operating Temperature -4 Degrees F
Number of Strands 28
Fire Rating Commercial
Maximum Operating Temperature 140 Degrees F
Conductor Gauge 20 AWG
Product Type Communication Cable
Resistance Properties Flame/Fire Resistant
Number of Pairs 1
Maximum Current 8 A
Maximum Impedance 56 ohm
Maximum Voltage Rating 300 V
Solid/Stranded Stranded
Package Quantity 1
