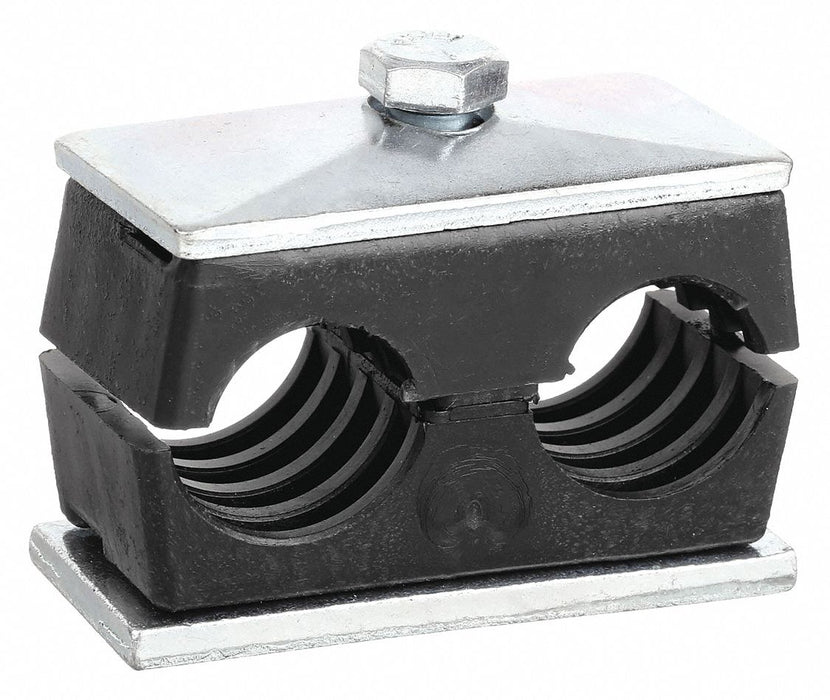

TW41125-PP Behringer Twin Beta Clamp

Behringer TW41125-PP Vibration-Dampening Twin Beta Clamp Kit, Ribbed Bore, Steel, Zinc-Plated, Polypropylene Cushion, Weld-On

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.45 lbs

$8.29 - $8.29
$8.29
$8.29 - $8.29
$8.29

Vibration-Dampening Beta Clamp, Clamp Material Steel, Clamp Material Finish Zinc-Plated, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 1 1/8 in, For Number of Lines 2, Load Capacity 180 lb, Maximum Operating Temperature 194 Degrees F, Mount Type Weld-On

Material Zinc-Plated
Type Weld Plate
Temp. Range (F) -22 to 194
Includes CLH Clamp Set (2 Halves), Hex Bolt, TCP Cover Plate, TWP Weld Plate
Hardware Material Zinc-Plated
Insert Material Polypropylene
Metal Detectable Yes
Cushion Material Polypropylene
Clamp Material Steel
Minimum Operating Temperature -22 Degrees F
Bolt Material Electro Zinc
Clamp Material Finish Zinc-Plated
Top Plate Material Electro Zinc
Mount Type Weld-On
Includes Mounting Hardware Yes
Bottom Plate Material Electro Zinc
Series Twin
Application Hydraulic Systems
Clamp Bore Style Ribbed
For Number of Lines 2
Clamp Style Weld Mount Clamp
Maximum Operating Temperature 194 Degrees F
Maximum Operating Pressure 5,000 psi
Number of Mounting Holes 0
Load Capacity 180 lb
For Use On Pipe, Tube
Clamp Type Beta Clamp Assembly
Country of Origin United States
