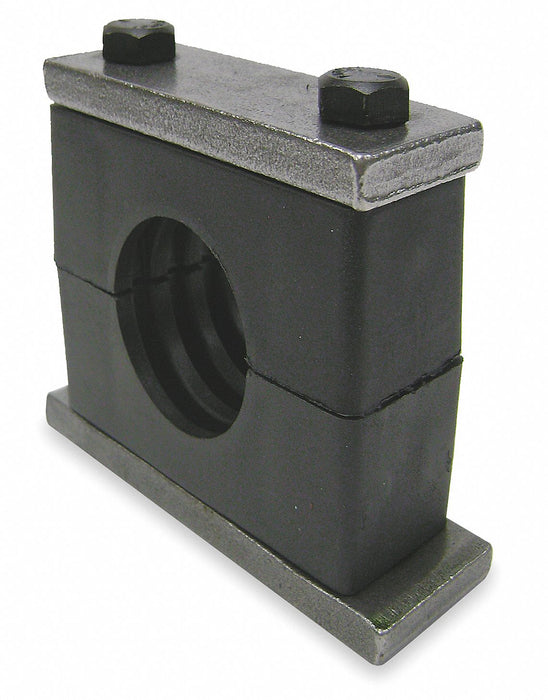

SHT30540-PP Behringer Beta Clamp

Behringer SHT30540-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, 304 Stainless Steel, Polypropylene Cushion, Weld-On

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.75 lbs

$43.09 - $43.09
$43.09
$43.09 - $43.09
$43.09

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material 304 Stainless Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, Load Capacity 180 lb

Material Stainless Steel
Type Weld Plate
Insert Material Polypropylene
Hardware Material 304 Stainless Steel
Includes CLH Clamp Set (2 Halves), SCP Cover Plate, SWP Weld Plate, (2) Hex Bolts
Temp. Range (F) -22 to 194
Metal Detectable Yes
For Number of Lines 1
Load Capacity 180 lb
Clamp Bore Style Ribbed
Series Heavy
Clamp Material 304 Stainless Steel
Cushion Material Polypropylene
Bolt Material Stainless Steel
Clamp Style Weld Plate Mount Clamp
Mount Type Weld-On
Maximum Operating Temperature 194 Degrees F
Application Hydraulic Systems
Number of Mounting Holes 0
Minimum Operating Temperature -22 Degrees F
Maximum Operating Pressure 5,000 psi
Clamp Type Beta Clamp Assembly
For Use On Pipe, Tube
Bottom Plate Material Stainless Steel
Top Plate Material Stainless Steel
Includes Mounting Hardware Yes
Country of Origin United States
