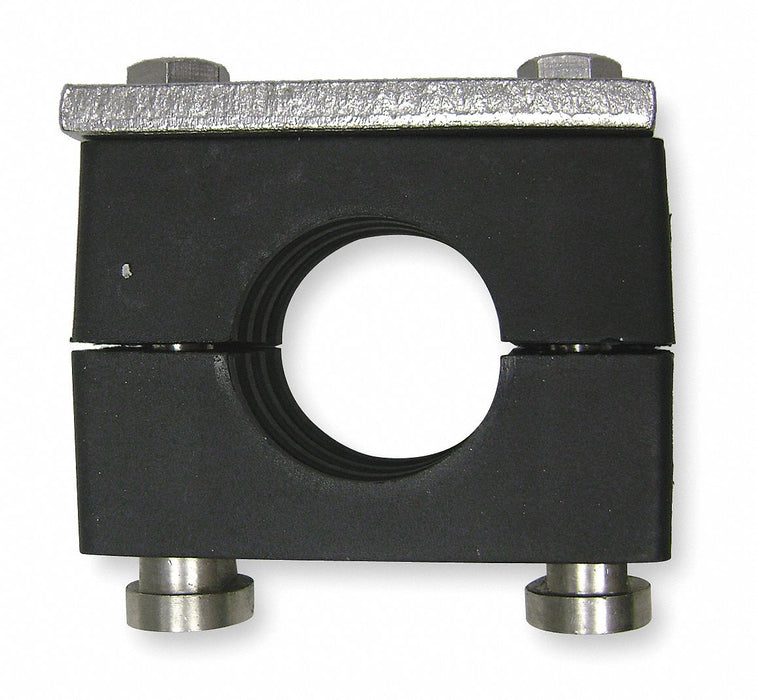

R8HT6225-PP Behringer Beta Clamp

Behringer R8HT6225-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, 304 Stainless Steel, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 1.7 lbs

$85.24 - $85.24
$85.24
$85.24 - $85.24
$85.24

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material 304 Stainless Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Maximum Outside Diameter 2 1/4 in, For Number of Lines 1, Load Capacity 180 lb

Type Rail Mount
Includes CLH Clamp Set (2 Halves), SCP Cover Plate, (2) Hex Bolts, (2) RCN Rail Nuts
Insert Material Polypropylene
Hardware Material 304 Stainless Steel
Temp. Range (F) -22 to 194
Metal Detectable Yes
For Use On Pipe, Tube
Maximum Operating Pressure 5,000 psi
For Number of Lines 1
Top Plate Material Stainless Steel
Bolt Material Stainless Steel
Load Capacity 180 lb
Series R8H
Cushion Material Polypropylene
Number of Mounting Holes 0
Mount Type Rail-Mount
Application Hydraulic Systems
Bottom Plate Material Stainless Steel
Clamp Material 304 Stainless Steel
Clamp Bore Style Ribbed
Maximum Operating Temperature 194 Degrees F
Includes Mounting Hardware Yes
Minimum Operating Temperature -22 Degrees F
Clamp Style Rail Mount Clamp
Clamp Type Beta Clamp Assembly
Country of Origin United States
