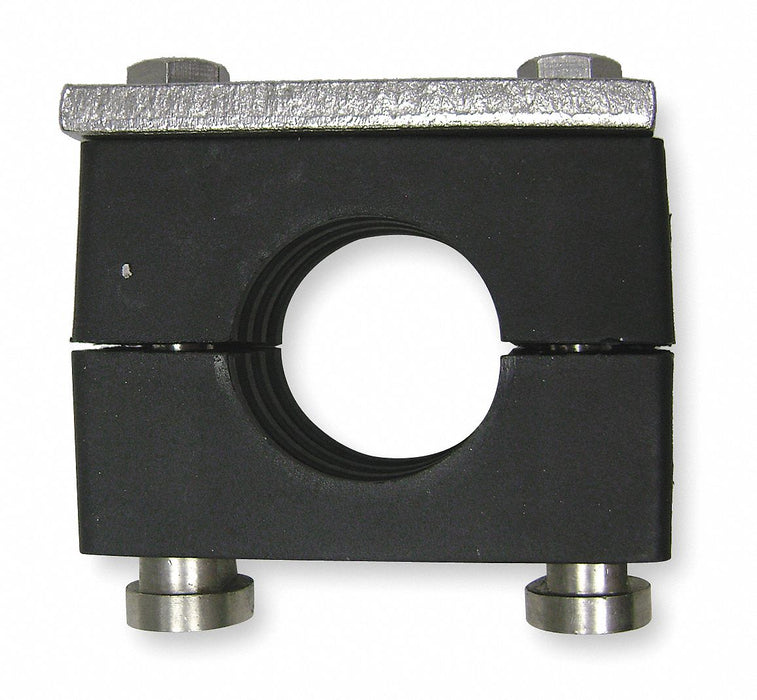

R8HT61900-PP Behringer Beta Clamp

Behringer R8HT61900-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, 304 Stainless Steel, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 1.7 lbs

$80.56 - $80.56
$80.56
$80.56 - $80.56
$80.56

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material 304 Stainless Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, For Pipe Size 1 1/2 in

Type Rail Mount
Includes CLH Clamp Set (2 Halves), SCP Cover Plate, (2) Hex Bolts, (2) RCN Rail Nuts
Insert Material Polypropylene
Hardware Material 304 Stainless Steel
Temp. Range (F) -22 to 194
Metal Detectable Yes
For Use On Pipe, Tube
Maximum Operating Pressure 5,000 psi
For Number of Lines 1
Top Plate Material Stainless Steel
Bolt Material Stainless Steel
Load Capacity 180 lb
Series R8H
Cushion Material Polypropylene
Number of Mounting Holes 0
Mount Type Rail-Mount
Application Hydraulic Systems
Bottom Plate Material Stainless Steel
Clamp Material 304 Stainless Steel
Clamp Bore Style Ribbed
Maximum Operating Temperature 194 Degrees F
Includes Mounting Hardware Yes
Minimum Operating Temperature -22 Degrees F
Clamp Style Rail Mount Clamp
Clamp Type Beta Clamp Assembly
Country of Origin United States
