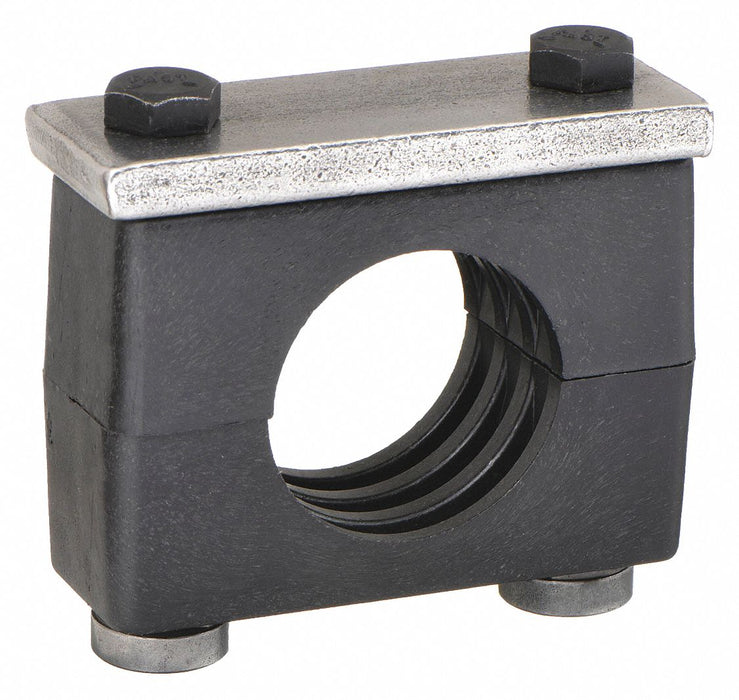

R8H6275-PP Behringer Beta Clamp

Behringer R8H6275-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, Steel, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.45 lbs

$25.19 - $25.19
$25.19
$25.19 - $25.19
$25.19

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, Load Capacity 180 lb

Type Rail Mount
Includes CLH Clamp Set (2 Halves), SCP Cover Plate, (2) Hex Bolts, (2) RCN Rail Nuts
Temp. Range (F) -22 to 194
Insert Material Polypropylene
Hardware Material Carbon Steel
Metal Detectable Yes
Clamp Material Steel
Series R8H
Maximum Operating Pressure 5,000 psi
Load Capacity 180 lb
Clamp Style Rail Mount Clamp
Clamp Type Beta Clamp Assembly
Top Plate Material Steel
Bolt Material Steel
Clamp Bore Style Ribbed
Minimum Operating Temperature -22 Degrees F
Mount Type Rail-Mount
Cushion Material Polypropylene
Bottom Plate Material Steel
Number of Mounting Holes 0
For Number of Lines 1
For Use On Pipe, Tube
Includes Mounting Hardware Yes
Maximum Operating Temperature 194 Degrees F
Application Hydraulic Systems
Country of Origin United States
