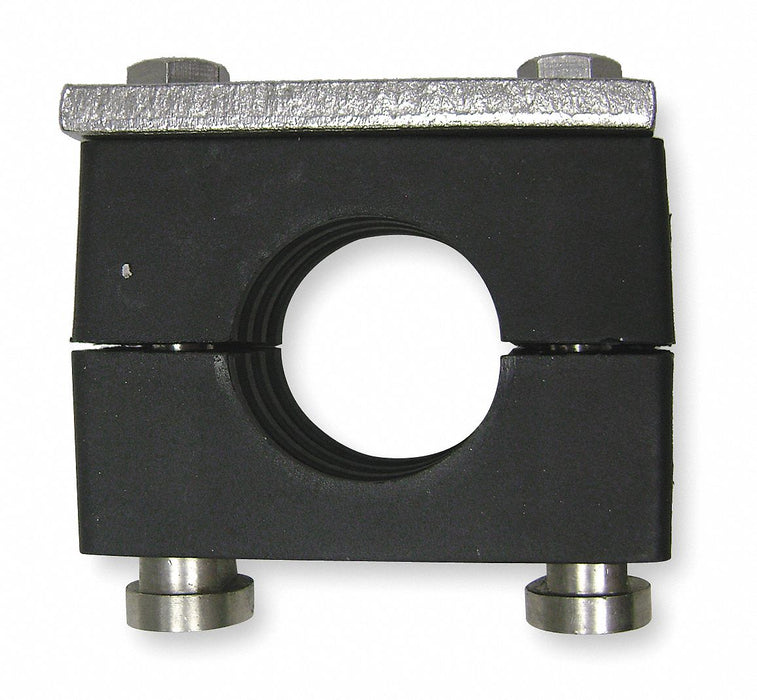

R7HT51315-PP Behringer Beta Clamp

Behringer R7HT51315-PP Vibration-Dampening Beta Clamp Kit, Ribbed Bore, 304 Stainless Steel, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.6 lbs

$51.71 - $51.71
$51.71
$51.71 - $51.71
$51.71

Vibration-Dampening Beta Clamp, Clamp Bore Style Ribbed, Clamp Material 304 Stainless Steel, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Number of Lines 1, For Pipe Size 1 in

Material Stainless Steel
Type Weld Plate
Temp. Range (F) -22 to 194
Hardware Material 304 Stainless Steel
Includes CLH Clamp Set (2 Halves), SCP Cover Plate, (2) Hex Bolts, (2) RCN Rail Nuts
Insert Material Polypropylene
Metal Detectable Yes
Bolt Material Stainless Steel
For Number of Lines 1
Clamp Material 304 Stainless Steel
Load Capacity 180 lb
Cushion Material Polypropylene
Maximum Operating Temperature 194 Degrees F
Number of Mounting Holes 0
Minimum Operating Temperature -22 Degrees F
Series R7H
Clamp Type Beta Clamp Assembly
Bottom Plate Material Stainless Steel
Top Plate Material Stainless Steel
Mount Type Rail-Mount
Clamp Style Rail Mount Clamp
Includes Mounting Hardware Yes
Clamp Bore Style Ribbed
For Use On Pipe, Tube
Country of Origin United States
