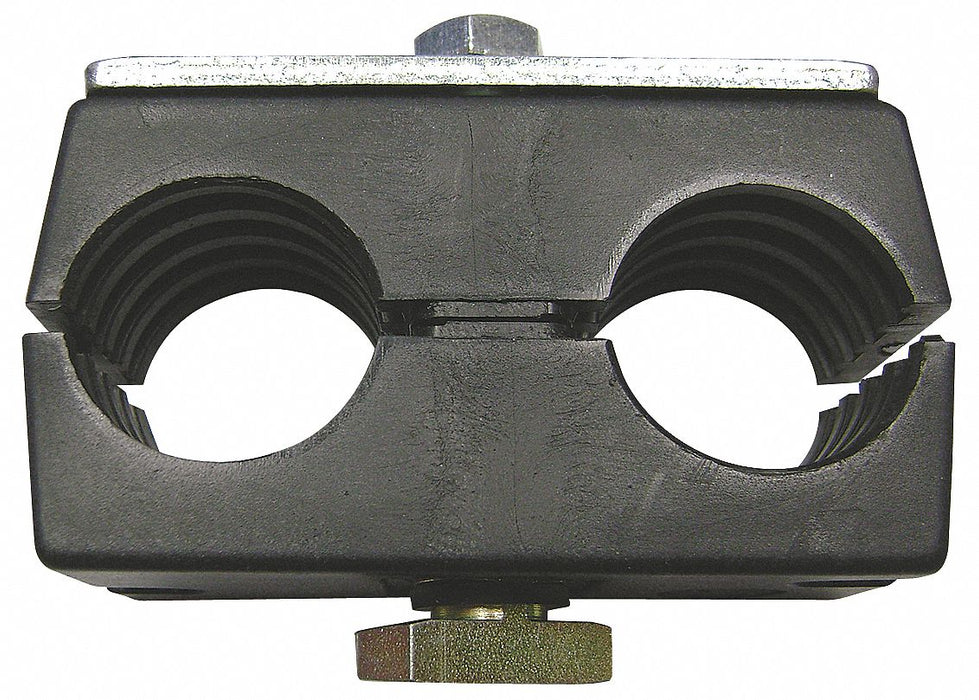

R0T41125-PP Behringer Twin Beta Clamp

Behringer R0T41125-PP Vibration-Dampening Twin Beta Clamp Kit, Ribbed Bore, Steel, Zinc-Plated, Polypropylene Cushion, Rail-Mount

UPC: | Harmonization / Schedule B : 7326.90.8630

Country of Origin: United States | Shipping Weight: 0.3 lbs

$14.46 - $14.46
$14.46
$14.46 - $14.46
$14.46

Vibration-Dampening Beta Clamp, Clamp Material Steel, Clamp Material Finish Zinc-Plated, Clamp Type Beta Clamp Assembly, Cushion Material Polypropylene, For Copper Tube Size 1 1/8 in, For Number of Lines 2, Load Capacity 180 lb, Maximum Operating Temperature 194 Degrees F, Mount Type Rail-Mount

Material Zinc-Plated
Type Rail Mount
Temp. Range (F) -22 to 194
Hardware Material Zinc-Plated
Insert Material Polypropylene
Includes CLH Clamp Set (2 Halves), Hex Bolt, RCN-0 Rail Nut, TCP Cover Plate
Metal Detectable Yes
Features Single Clamps with Polypropylene Insert
Mount Type Rail-Mount
Clamp Bore Style Ribbed
Clamp Type Beta Clamp Assembly
Clamp Material Finish Zinc-Plated
Includes Mounting Hardware Yes
For Number of Lines 2
Number of Mounting Holes 0
Load Capacity 180 lb
Application Hydraulic Systems
Minimum Operating Temperature -22 Degrees F
Maximum Operating Temperature 194 Degrees F
Clamp Material Steel
Cushion Material Polypropylene
Maximum Operating Pressure 5,000 psi
Clamp Style Rail Mount Clamp
Top Plate Material Electro Zinc
For Use On Pipe, Tube
Bolt Material Electro Zinc
Bottom Plate Material Electro Zinc
Series Twin
Country of Origin United States
