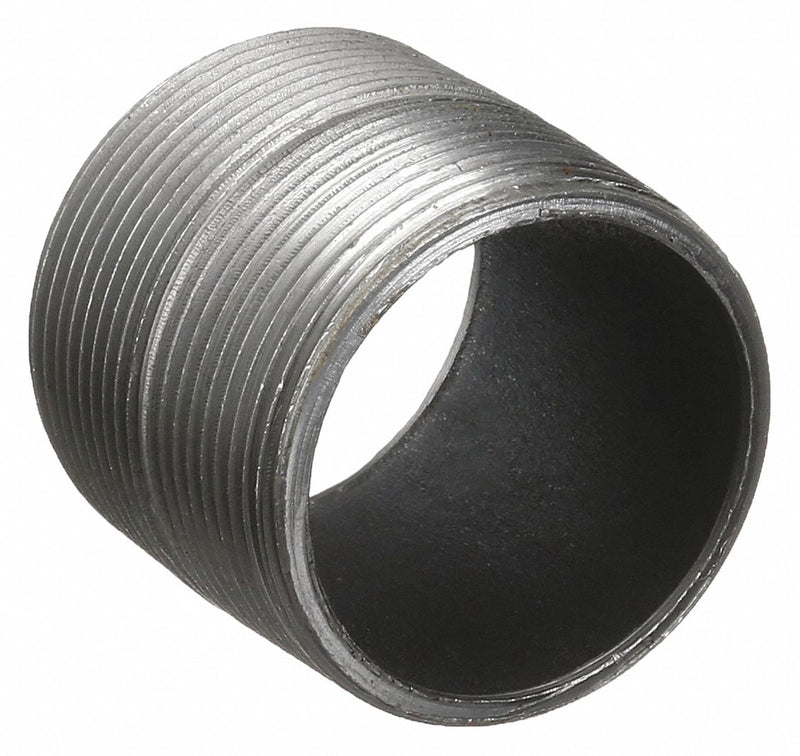

Beck 0330045204 Pipe Nipple, 3 in Nominal Pipe Size, Male NPT x Male NPT, 2 5/8 in Lg, Schedule 40, Welded

Beck 0330045204 Pipe Nipple, 3 in Nominal Pipe Size, Male NPT x Male NPT, 2 5/8 in Lg, Schedule 40, Welded

UPC: 690291350726 | Harmonization / Schedule B : 7307.99.5045

Country of Origin: United States | Shipping Weight: 0.95 lbs

$43.24 - $43.24
$43.24
$43.24 - $43.24
$43.24

Pipe Nipple, Application Air, Gases, Non-Potable Water, Oils, Finish/Coating Black Anodized, Inside Diameter 3 1/16 in, Manufacture Location Made in USA, Material Steel, Material Grade Grade B, Maximum Operating Pressure 300 psi @ 150 Degrees F, Maximum Steam Pressure 150 psi @ 360 Degrees F, Metal Pipe Construction Welded, Nominal Pipe Size 3 in

Pipe Size - Nominal 3 in
Overall Pipe Length Close Thread
Pipe Size (Fittings) 3"
Wall Thickness 0.203 in
Outside Dia. 3 1/2 in
Inside Dia. 3 1/16 in
Pipe Size (Nominal) 3"
Inside Diameter 3 1/16 in
Nominal Pipe Size 3 in
Outside Diameter 3 1/2 in
Overall Length 2 5/8 in
Wire Rope Length 2 5/8 in
Length 2 5/8 in
Pipe Connection Type Threaded on Both Ends
Pipe Type Pipe Nipple
Material - Pipe Black Steel
Pipe Schedule 40
Pipe Weld Type Continuous Weld
Pipe Thread Type MNPT x MNPT
Max. Pressure 300 psi @ 150 Degrees F
Seamless/Welded Welded
Max. Steam Pressure 150 psi WSP @ 360 Degrees F
Pipe Fitting Connection Type MNPT x MNPT
Standards ASTM A53 Type F, ASTM A733, Grade A
Metal Detectable Yes
Specific Pipe Fitting Shape Nipple
Basic Pipe Fitting Shape Nipple
Basic Pipe Fitting Material Metal
Pipe Fitting Schedule/Class Schedule 40
Side B Gender Male
Thread Configuration Fully Threaded
Thread Type NPT
Side B Thread Type NPT
Side A Gender Male
Application Air, Gases, Non-Potable Water, Oils
Material Steel
Material Grade Grade A
Side A Connection Type Threaded
Maximum Operating Pressure 300 psi @ 150 Degrees F
Side B Connection Type Threaded
Metal Pipe Construction Welded
Finish/Coating Black Anodized
Side A Thread Type NPT
Maximum Steam Pressure 150 psi @ 360 Degrees F
Schedule Schedule 40
Manufacture Location Made in USA
Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included
Country of Origin United States
