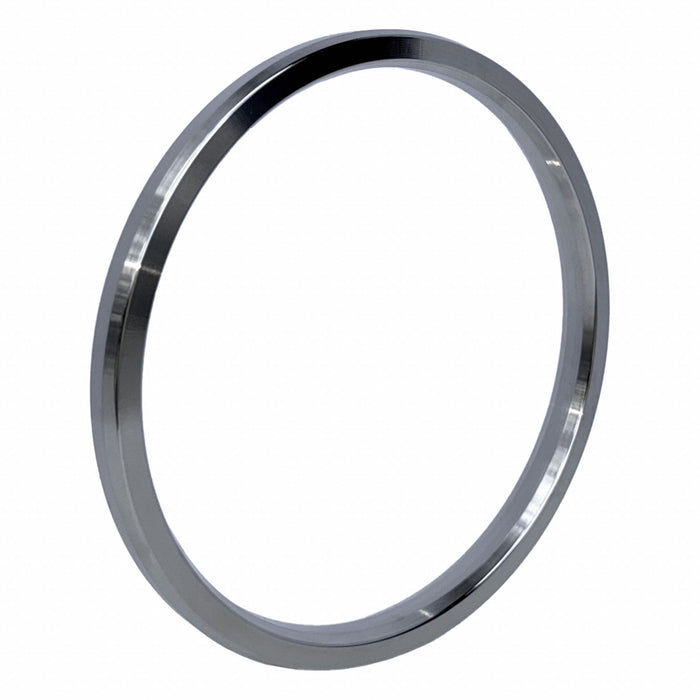

ASP R-Series Octagonal Ring Joint Gasket

ASP R16.OCT Ring Joint Gasket, Octagonal, ANSI Class 2500, 3/4 in & 1 in

UPC: | Harmonization / Schedule B : 8484.90.0000

Country of Origin: India | Shipping Weight: 0.33 lbs

$3.59 - $3.59
$3.59
$3.59 - $3.59
$3.59

These R series ring-type joint (RTJ) gaskets are made of soft iron and seal RTJ flanges in low-temperature conditions. Soft iron conforms to flange surfaces in environments where corrosion is not a concern.

Product Type Ring Gasket
Shape Octagonal
For ANSI Pressure Class 2,500
Gasket Material Soft Iron
Color Yellow
For Pipe Size 3/4 in; 1 in
Inside Diameter 42-7/8 mm
Outside Diameter 58-3/4 mm
Thickness 12-45/64 mm
For Environment High Temperature
For Fluid Type Gas; Oil; Petrochemical
Market Industrial
Maximum Operating Pressure 5,000 psi
Features Metal-to-Metal Seal
Standards API 6A; ASME B16.20
Country of Origin India
