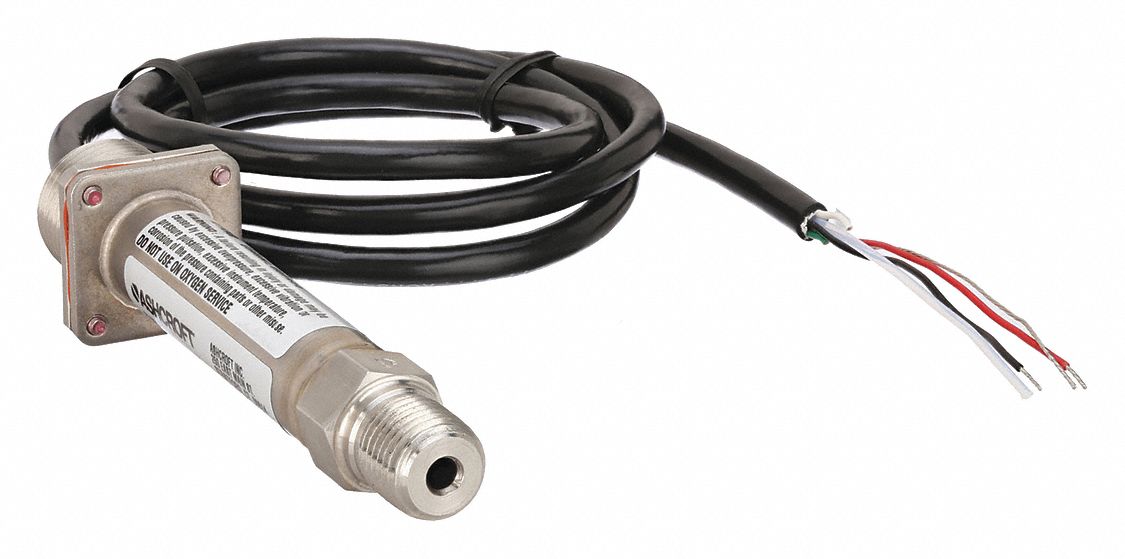

Ashcroft K17M0242C1 5000# Pressure Transmitter

Ashcroft K17M0242C1 5000# Pressure Transmitter, 0 to 5000 psi, 4-20mA DC, 1/4 in MNPT, K1 Series

UPC: 783029042809 | Harmonization / Schedule B : 9026.20.4000

Country of Origin: United States | Shipping Weight: 1 lbs

$473.23 - $473.23
$473.23
$473.23 - $473.23
$473.23

Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 5,000 psi, Electrical Connections Cable & Wire Leads, Output 4 to 20mA DC, Accuracy +/-1 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 10 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP67, Series K1, Wiring Entry 1/2 in MNPT Conduit Connection, Maximum Operating Temperature 180 Degrees F, Minimum Operating Temperature -20 Degrees F

Accuracy +/-1% of Full Scale
Housing Material Stainless Steel
Output 4 to 20mA DC
Electrical Connections Cable & Wire Leads
Process Connection 1/4 in Male NPT
Process Connection Type NPT
Operating Temp. -20 To 180 F
Power Required 10 to 36V DC
Response Time 5 msec
Series K1
Wiring Entry - Transmitter 1/2 in MNPT
Wetted Materials 316 Stainless Steel
Housing Stainless Steel
Range 0 to 5000 psi
Compatible With Any Process Compatible with Stainless Steel
NEMA Rating NEMA 4X
Transmitter Type Pressure Transmitter
Max. Pressure (PSI) 15,000 psi
Safety Rating Class I Div. 1 Group A, B, C, D, F, G; Class II Div. 1 Group A, B, C, D, F, G; Class III Div. 1 Group A, B, C, D, F, G
Features Perfect Choice for Harsh Operating Environments, Thin Film Sensor Technology and Production Processes Eliminate Signal Instability and Drift, Virtually Unaffected by Shock or Vibration
Thermal Error +/-0.04%
Process Connection Gender Male
Maximum Pressure 5,000 psi
Type of Pressure Positive
Burst Pressure 3x Range
Fitting Material Stainless Steel
Cable Material PVC
Storage Temperature Range -65 Degrees F to 250 Degrees F (-54 Degrees C to 121 Degrees C)
Intrinsically Safe No
Wiring Entry 1/2 in MNPT Conduit Connection
Overpressure 1.5x Range
Number of Wires 2
Standards CRN
Pressure Type Measured Gauge
IP Rating IP67
Country of Origin United States
