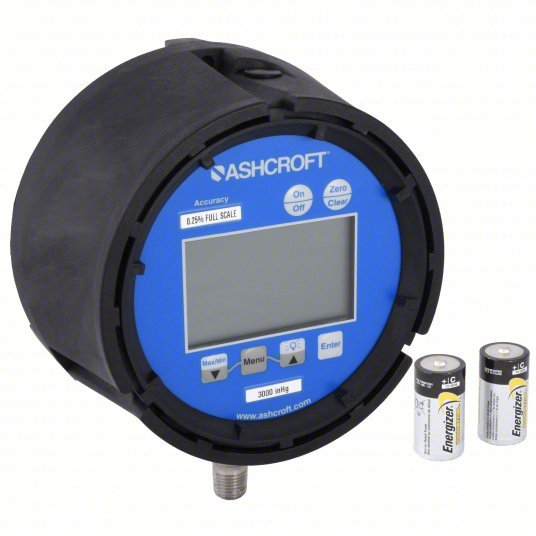

Ashcroft 452074SD02L3000BL Digital Pressure Gauge, 0 to 3000 psi, 1/4 in MNPT, Plastic, Black

UPC: 783029535479 | Harmonization / Schedule B : 9026.20.8000

Country of Origin: United States | Shipping Weight: 1.95 lbs

$689.32 - $689.32
$689.32
$689.32 - $689.32
$689.32
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Thermoplastic, Nominal Dial Size 4 1/2 in, Lens Material Polyester, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Stainless Steel, Socket Material 316 Stainless Steel, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, kPa, psi, Process Connection Gender Male, Battery Type (2) C Batteries, Process Connection Location Bottom, Process Connection Size 1/4 in
Connection Location Bottom
Includes Battery and Instructions
Range 0 to 3000 psi
Digital Pressure and Vacuum Gauge Type Digital Pressure Gauge
Accuracy +/-0.25%
Application Pneumatics, Hydraulics
Gauge Primary Range Values 0 to 3000
Gauge Primary Range Units psi
Gauge Connection Type MNPT
Basic Gauge Case Material Plastic
Case Color Black
Case Material Plastic
Agency Compliance CE, CSA, FM
Display Units bar, kPa, psi
Resolution Dependent on Display Units Selected
Digital Gauge Accuracy +/-0.25% Full Scale
Digital Gauge Display Units bar, kPa, psi
Socket Material 316 Stainless Steel
Powered By (2) C Batteries
Gauge Connection Location Bottom
Peak Hold No
Basic Gauge Wetted Parts Stainless Steel
Gauge Operating Temp. Range -14 Degrees to 140 Degrees F
Display LCD
Series 2074
Calibration Certificate No
Number of Display Digits 5
Gauge Case Material Thermoplastic
Pressure Range 0 to 3,000 psi
Standards CSA, FM
Process Connection 1/4 in NPT Male
Auto-Shutoff Time 2 min, 5 min, 15 min, 30 min
Memory Features Min/Max
Temperature Error 0.04% Degrees F
Display Screen Type LCD
Process Connection Type NPT
Languages English
Lens Material Polyester
Battery Run Time 2,000 hr
Panel-Mountable No
Gauge Wetted Parts Stainless Steel
Burst Pressure 4,500 psi
Sensor Type Diaphragm
Differentiator (HIDDEN) 452074SD02L3000BL No
Low Battery Indicator No
Includes Rubber Boot No
Test Pressure Gauge Type Test Pressure Gauge
Bar Graph 10 Segments
Primary Display Range 0 to 3,000
Includes Mounting Hardware No
IP/NEMA Rating IP65
Pressure Range Type Pressure
Adjustable Set Points No
Primary Display Units psi
Primary Units psi
Process Temperature Range 14 Degrees to 140 Degrees F
With Calibration Certificate Standard Gauge
Battery Type (2) C Batteries
Hazardous Location Rating Not Rated
Includes Batteries Yes
Weatherproof Yes
Power Source Battery
Non-Sparking No
Process Connection Location Bottom
Includes Calibration Certificate No
Data Update Frequency 100 msec, 200 msec, 500 msec, 1 sec
Primary Range 0 to 3,000
Backlit Screen Yes
Blowout Safety Back No
Case Shape Round
Sensor Material Stainless Steel
Display Range 0 to 20.684 Mpa, 0 to 206.8 bar, 0 to 210.93 kg/sq cm, 0 to 3,000 psi, 0 to 6,108 in Hg, 0 to 6,923 ft H2O
Pressure Gauge Type Test Pressure Gauge
Number of Digits 5
Panel Mount Characteristics 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle
Process Connection Gender Male
Auto-Shutoff Yes
Gauge Mounting Type Stem-Mount
