Ashcroft 35 1005P XUL 02L 80# Pressure Gauge, 0 to 80 psi, 1/4 in MNPT, Plastic, Black - KVM Tools Inc.KV5WJ62

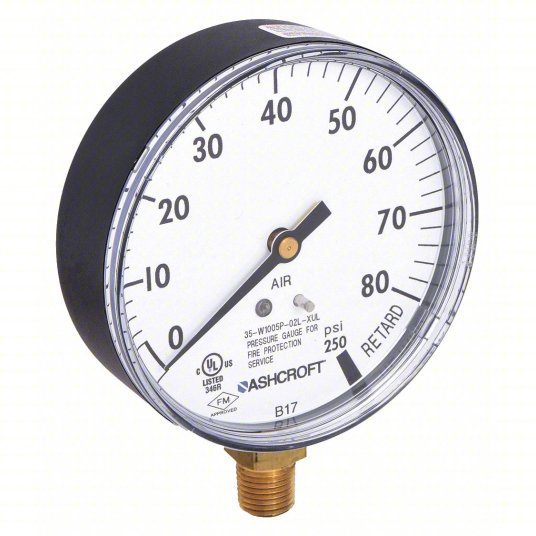

Ashcroft 35 1005P XUL 02L 80# Pressure Gauge, 0 to 80 psi, 1/4 in MNPT, Plastic, Black

UPC: 662876269921 | Harmonization / Schedule B : 9026.20.8000

Country of Origin: Brazil | Shipping Weight: 0.35 lbs

$30.98 - $30.98
$30.98
$30.98 - $30.98
$30.98
Pressure Gauge, Gauge Type Sprinkler System, Dial Size (In.) 3-1/2, Range 0 to 80 psi, Connection Size 1/4" NPT, Connection Location Lower, Smallest Graduation (PSI) 2, Accuracy (%) +/-3-2-3, Case Material ABS Plastic, Case Color Black, Socket Material Brass, Tube Material Phosphor Bronze, Lens Material Threaded Polycarbonate, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Series 1005P, Manufacturers Warranty Length 1 Year
Item Fire Sprinkler System Pressure Gauge
Connection Location Lower
Gauge Application Fire Sprinkler Systems
Range 0 to 80 psi
Accuracy +/-3-2-3%
Material ABS
Color Black
Gauge Primary Range Values 0 to 80
Gauge Primary Range Units psi
Gauge Connection Type MNPT
Basic Gauge Case Material Plastic
Case Color Black
Gauge Primary Range Numbered Graduations 20
Gauge Case Material ABS Plastic
Gauge Sensor Material Phosphor Bronze
Liquid Filled No
Basic Gauge Lens Material Plastic
Calibration Certificate Included No
Basic Gauge Sensor Material Bronze
Gauge Lens Material Polycarbonate
Gauge Socket Material Brass
Gauge Accuracy +/-3-2-3%
Series 1005P
Pressure and Vacuum Gauge Type Pressure Gauge
Basic Gauge Socket Material Brass
Operating Temp. Range -40 Degrees to 150 Degrees F
Graduations 20 psi
Smallest Graduation 2 psi
Gauge Connection Location Bottom
Gauge Primary Range Smallest Graduation 2
Gauge Panel Mountable No
Max. Pressure (PSI) 80
Gauge Case Color Black
Basic Gauge Wetted Parts Brass / Bronze
Socket Material Brass
Case Material Plastic
Process Connection Location Bottom
Dial Color White
Lens Material Polycarbonate
Primary Scale Minor Graduations 2
Movement Material Brass
Sensor Type Bourdon Tube
Pointer Color Black
Hazardous Location Rating Not Rated
Sensor Material Phosphor Bronze
Ambient Operating Temperature Range -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Removable Bezel No
Process Connection Gender Male
Process Temperature Range -40 Degrees to 150 Degrees F
Pressure Range Type Pressure
Case Construction ABS Plastic
Lens Material - Gauge Plastic
Reads Head Pressure No
Dial Face Material Aluminum
Primary Scale Units psi
Gauge Accuracy Grade Grade B - Commercial
Primary Pressure Range 0 to 80
Primary Scale Numeric Increments 20
Gauge Wetted Parts Brass / Bronze
IP/NEMA Rating Not Rated
Freeze Resistant Movement No
Process Connection Type NPT
Scale Type Single
Accuracy Grade ASME B40.100 Grade B
Pointer Material Aluminum
Pressure Gauge Type Fire Sprinkler System Gauge
Compatible Process Media Air
Bezel Mounting Type No Bezel
Accuracy Scale Mid-Scale
