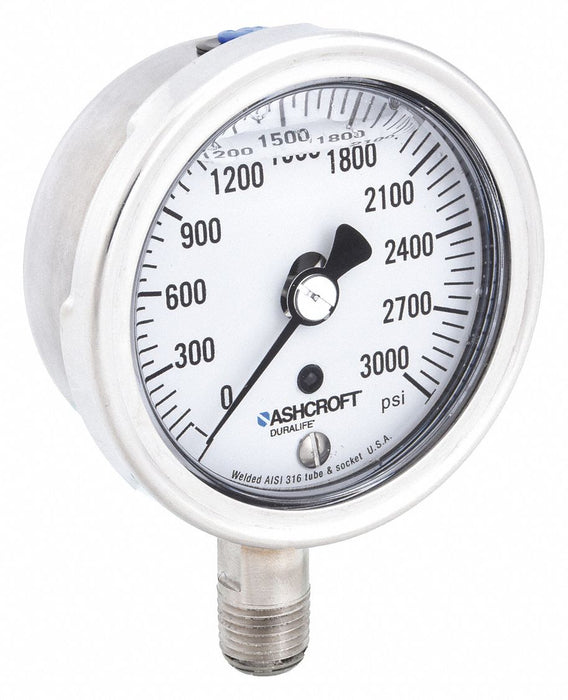

Ashcroft 1009 251009SWL02L3000 Industrial Pressure Gauge

Ashcroft 1009 251009SWL02L3000# Industrial Pressure Gauge, 0-3,000 psi, 2-1/2 in Dial, 1/4 in NPT Male Bottom, Glycerin-Filled, 304 SS Case, 316L Socket/Bourdon

UPC: 759426942158 | Harmonization / Schedule B : 9026.20.0000

Country of Origin: United States | Shipping Weight: 1.5 lbs

$157.52 - $157.52
$157.52
$157.52 - $157.52
$157.52

Industrial Pressure Gauge, Nominal Dial Size 2-1/2 in, Accuracy +/-1.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed), Primary Pressure Range 0 to 3,000 psi, Vibration Resistance Liquid-Filled

Accuracy +/-1.5%
Series 1009
Pressure Range 0 to 3,000 psi
Pressure Range Type Pressure
Nominal Dial Size 2-1/2 in
Gauge Case Material 304 Stainless Steel
Lens Material Polycarbonate
Socket Material 316L Stainless Steel
Sensor Material 316L Stainless Steel
Sensor Type Bourdon Tube
Movement Material 304 Stainless Steel
Bezel Material 304 Stainless Steel
Process Connection 1/4 in NPT Male, Bottom
Case Liquid Glycerin
Liquid-Filled Case Yes
Field Fillable Yes
Removable Bezel Yes
IP / NEMA Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed), NEMA 4X
Burst Pressure 23,400 psi
Accuracy Grade ASME B40.100 Grade 1A
Standards ASME, CE, CRN, NSF, RoHS, UKCA
Application Refrigeration, Autoclave, Boilers, Water Pressure Testing, Equipment Skids, Hydraulics, Pneumatics, Pumps, Severe Ambient Conditions, OEM Applications
Operating Temperature Range -20°F to 150°F (-7°C to 66°C)
Country of Origin United States
