| Housing Material - Pumps |
Polypropylene |
| Diaphragm Material - Pumps |
PTFE |
| Max. Flow |
15 gpm |
| Item - Air Operated Pumps |

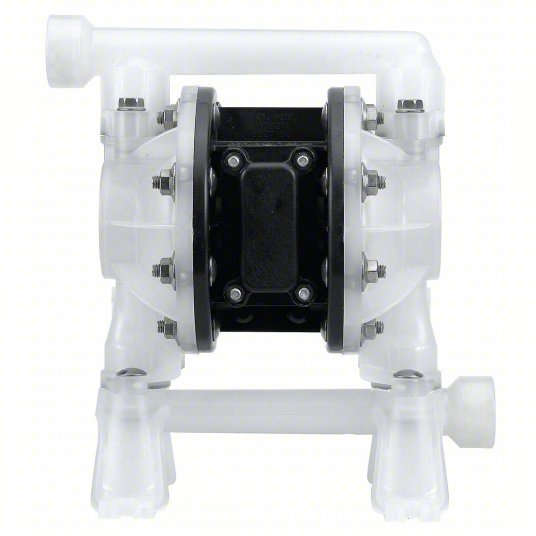

Double Diaphragm Pump |
| Pump Operation Type |
Air |
| Max. Temp - Pumps |
150 Degrees F |
| Connection Style |
NPT |
| Agency Compliance |
CE, REACH, RoHS |
| Self-Priming Dry |
10 ft |
| Max. Temp. |
150 Degrees F |
| Diaphragm Material |
PTFE |
| Check Seat Material |
Polypropylene |
| Ball Material |
PTFE |
| Valve Type |
Ball |
| Body Material |
Polypropylene |
| Self-Priming Wet |
15 ft |
| Item |
Double Diaphragm Pump |
| Max. Flow GPM |
15 gpm |
| Manifold Connection |
Single Port |
| Max. Operating Pressure |
100 psi |
| Operation Type |
Air Operated |
| Standards |
ATEX Certified |
| Manifold Connection Type |
NPT |
| Housing Material |
Polypropylene |
| Series Family |
Compact |
| Media Discharge Location |
Side |
| Nameplate Voltage |
N |
| Media Temperature (Maximum) |
225 Degrees F |
| Non-Wetted Housing Material |
Plastic |
| Fluid Discharge Connection |
3/4 in NPTF |
| Media Discharge Connection Type |
NPTF |
| Flow Rate @ 30 psi |
Not Applicable |
| Air Consumption (Maximum) |
20 scfm |
| Valve Material |
PTFE |
| Flow Rate @ 90 psi |
16.1 gpm |
| Media Temperature (Minimum) |
40 Degrees F |
| Valve Material |
PTFE |
| Mounting Hardware Material |
Stainless Steel |
| Media Intake Connection Type |
NPT |
| Flow Rate @ 60 psi |
14.9 gpm |
| Feet of Head (Maximum) |
230 ft |
| Wetted Housing Material |
Polypropylene |
| Chemical Compatibility |
Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water |
| Media Intake Type |
NPT |
| Flow Rate @ 120 psi |
Not Applicable |
| Fluid Intake Connection |
3/4 in NPT |
| Operating Pressure (Maximum) |
100 psi |
| Viscosity (Maximum) |
15,000 cps |
| Flow Rate @ 15 psi |
Not Applicable |
| For Use With Potable Systems |
Yes |
| Flow Rate @ 20 psi |
Not Applicable |
| Media Intake Location |
Side |
| Flow Rate @ 10 psi |
Not Applicable |
| Fluid Connection Type |
NPT |
| Air Intake Pressure (Maximum) |
100 psi |
| Flow Rate @ 50 psi |
14 gpm |
| Priming |
Self-Priming |
| Flow Rate @ 40 psi |
12.5 gpm |
| Flow Rate (Maximum) |
16.3 gpm |
| Pump Assembly Type |
Bolt |
| Air Inlet |
1/4 in NPT |
| Air Intake Connection Type |
NPT |
| Flow Rate @ 80 psi |
15.9 gpm |
| Media Discharge Type |
NPTF |
| Port Location |
Side Side |
| NPSHr |
35 ft of head |
| Flow Rate @ 70 psi |
15.5 gpm |
| Series |
PD07R |
| Flow Rate @ 100 psi |
16.3 gpm |
