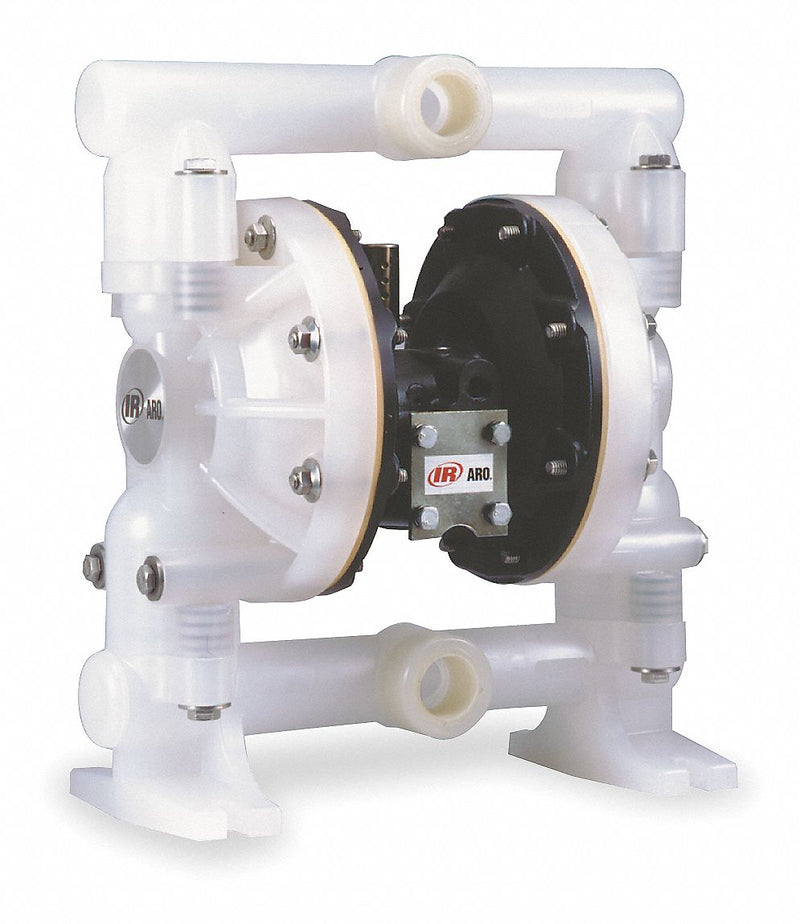

Aro 6661AJ-322-C Double Diaphragm Pump, Polypropylene Body, 1 in, NPT Connection, 47 gpm, 275 ft Max. Head

Aro 6661AJ-322-C Double Diaphragm Pump, Polypropylene Body, 1 in, NPT Connection, 47 gpm, 275 ft Max. Head

UPC: | Harmonization / Schedule B : 8413.50.0050

Country of Origin: United States | Shipping Weight: 22.9 lbs

$2,062.68 - $2,062.68
$2,062.68
$2,062.68 - $2,062.68
$2,062.68

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 48 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1 in, Media Intake Connection Type NPTF, Media Intake Location Center

Housing Material - Pumps Polypropylene
Pump Assembly Type Bolt
Manifold Connection Single Port
Valve Material Buna-N
Valve Type Ball
Air Consumption (Maximum) 45 scfm
Air Intake Connection Type NPT
Check Seat Material Polypropylene
Diaphragm Material Buna-N
Media Temperature (Maximum) 175 Degrees F
Media Temperature (Minimum) 10 Degrees F
Operating Pressure (Maximum) 120 psi
Agency Compliance CE, REACH, RoHS
Self-Priming Wet 20 ft
Pump Operation Type Air
Self-Priming Dry 15 ft
Inlet/Outlet 1 in
Manifold Connection Type NPT
Media Discharge Location Top
Chemical Compatibility Antifreeze, Calcium Carbonate, Oil-Based Paint, Potassium Hydroxide 50%, Water
Series Family Pro
For Use With Potable Systems No
Flow Rate @ 60 psi 40.8 gpm
Nameplate Voltage N
Flow Rate @ 50 psi 39 gpm
Series PRO
Wetted Housing Material Polypropylene
Flow Rate @ 120 psi 48 gpm
Air Intake Pressure (Maximum) 120 psi
Priming Self-Priming
Feet of Head (Maximum) 275 ft
Media Discharge Connection Type NPT
Flow Rate @ 40 psi 36 gpm
Media Intake Connection Type NPT
Flow Rate @ 80 psi 44 gpm
Flow Rate @ 90 psi 45.2 gpm
Media Intake Location Bottom
Flow Rate @ 70 psi 42 gpm
Flow Rate @ 100 psi 46 gpm
Viscosity (Maximum) 40,000 cps
Flow Rate (Maximum) 47 gpm
NPSHr 40 ft of head
Wetted Body Material Polypropylene
Material Conductivity Non-Conductive
Media Intake Port Configuration Center Horizontal
Displacement Per Stroke 0.085 gal
Media Discharge Port Configuration Center Horizontal
Diaphragm Reinforcement Fabric Reinforced
Manifold Connection Standard NPT
Center Section Material Aluminum
Manifold Port Connection Type Single Port
Includes Solenoid No Solenoid Included
Diaphragm Base Material Buna-N
Fluid Chamber Assembly Type Bolted
Mounting Hardware Material Stainless Steel
Country of Origin United States
