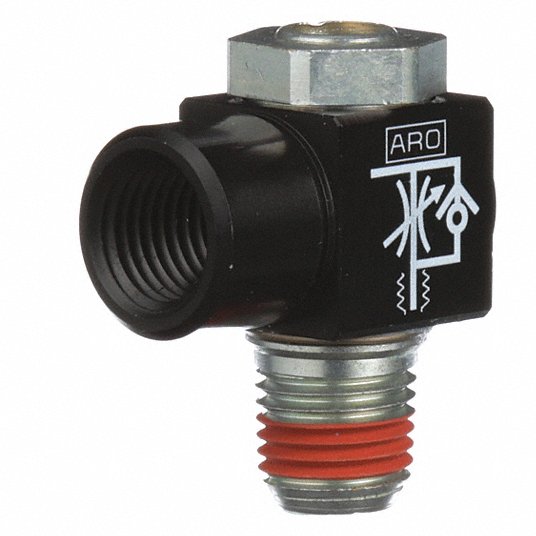

Flow Control Valve, Directions Controlled 1, Valve Inlet Port 1/4 in NPT, Valve Outlet Port 1/4 in NPT, Valve Max. Pressure Rating 150 psi, Max. CFM - Valves 33 cfm, Max. Temp. 0 to 158 Degrees F, Nickel-plated Brass Body, 360 Degrees Rotation, Screwdriver Speed Adjustment, Stainless Steel Spring, Anodized Aluminum Swivel, Length 1 39/64 in, Width 3/4 in, Height 1 19/64 in, Pneumatic Valves Product Group Flow Control Valve
| Max. Operating PSI |
150 |
| Inlet Port |
1/4" NPT |
| Body Material |
Brass |
| Speed Adjustment |
Screwdriver |
| Max. Temp. |
0 to 158 Degrees F |
| Valve Inlet Port |
1/4 in NPT |
| Rotation |
360 Degrees |
| Swivel |
Anodized Aluminum |
| Outlet Port |
1/4" NPT |
| Max. CFM - Valves |
33 cfm |
| Directions Controlled |
1 |
| Body |
Nickel-plated Brass |
| Valve Max. Pressure Rating |
150 psi |
| Coefficient of Volume |
0.7 |
| Spring |
Stainless Steel |
| Valve Outlet Port |
1/4 in NPT |
| Seal Material |
Buna-N |
| Spring Material |
Stainless Steel |
| Finish |
Nickel Plated |
| Operating Temperature - Maximum |
158 Degrees F |
| Outlet Port Connection Gender |
Female |
| Adjustment Method |
Screwdriver |
| Inlet Port Connection Gender |
Male |
| Configuration |
Angle |
| Operating Temperature - Minimum |
32 Degrees F |
| Product Type |
Flow Control Valve |
| Operating Pressure - Maximum |
150 psi |
| Inlet Port Connection Type |
NPT |
| Outlet Port Connection Type |
NPT |
| Flow Rate - Maximum |
33 scfm |
| Control Direction |
Uni-Directional |
| Operating Pressure - Minimum |
15 psi |
