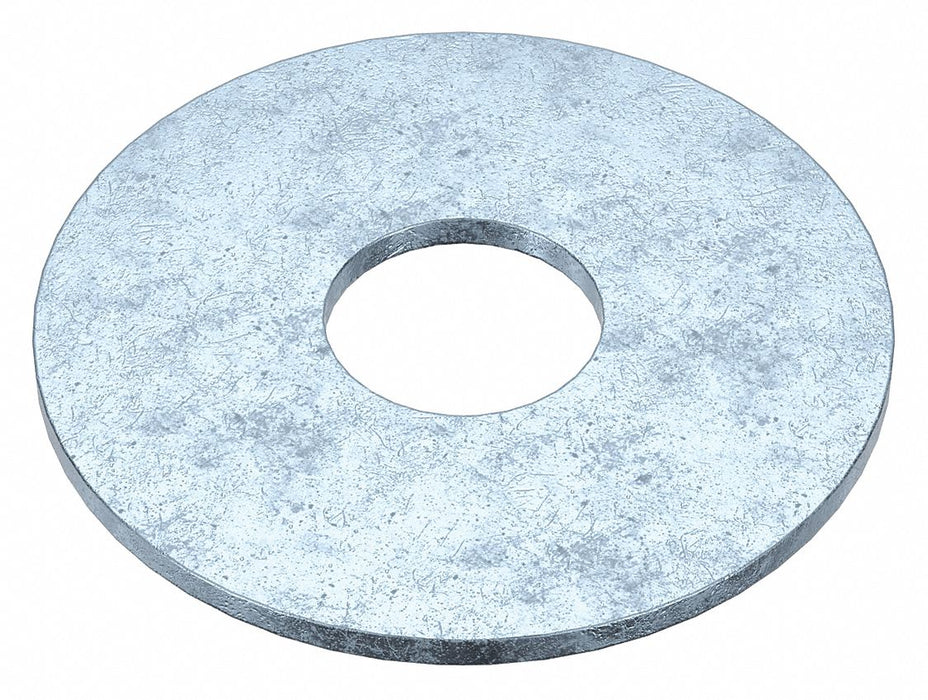

Approved Vendor Z0468 Large O.D. Oversized Washer, Case Hardened Steel, Zinc Plated, 3/8 in Screw Size, 1-1/4 in OD, 50 PK

Approved Vendor Z0468 Large O.D. Oversized Washer, Case Hardened Steel, Zinc Plated, 3/8 in Screw Size, 1-1/4 in OD, 50 PK

UPC: | Harmonization / Schedule B : 7318.22.0000

Country of Origin: United States | Shipping Weight: 0.65 lbs

$6.75 - $6.75
$6.75
$6.75 - $6.75
$6.75

Large O.D. Oversized Washer, Flat Washer Type Oversized, Dimensional Standards ASME B18.22.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 3/8 in, Inside Diameter 0.406 in, Outside Diameter 1 1/4 in, Maximum Thickness 0.052 in, System of Measurement Inch, Minimum Thickness 0.042 in, Color Silver, Inside Diameter Tolerance +/-0.010 in, Material Quality Standards ASTM A108, Outside Diameter Tolerance +/-0.010 in, Pack Size Small Pack, Rockwell Hardness B55

For Screw Size 3/8"
Outside Diameter 1-1/4 in
Minimum Thickness 0.042 in
Maximum Thickness 0.052 in
Inside Diameter 0.406 in
Outside Diameter Tolerance +/-0.010 in
Inside Diameter Tolerance +/-0.010 in
CAD Available Yes
Material Steel
Finish Zinc Plated
Washer Standards ASME B18.22.1
System of Measurement Inch
For Use With Screws and Studs
Thickness Tolerance +0.005/-0.004 in
Rockwell Hardness B40
Flat Washer Type Fender Washer
Package Weight 0.8 lb
Washer Material Grade Low Carbon
Type Oversized Flat Washer
Color Silver
Material Grade/Class Case Hardened
Pack Size Small Pack
Dimensional Standards ASME B18.22.1
Washer Type Large Outside Diameter
Material Quality Standards ASTM A108
Hardness 55 HRB
FDA Approved Not FDA Approved
Country of Origin United States
