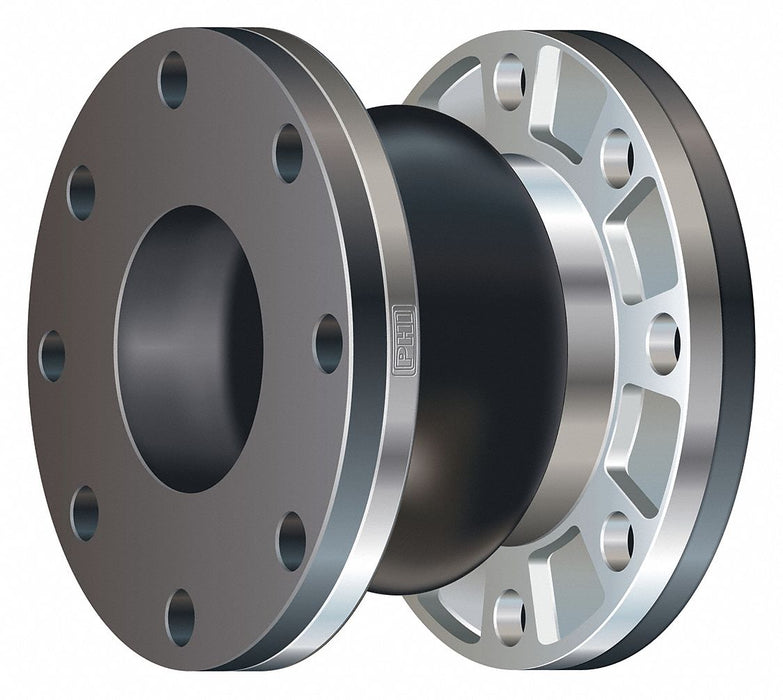

Approved Vendor WA-48-EE Expansion Joint, 3 in Pipe Size

Approved Vendor WA-48-EE Expansion Joint, 3 in Pipe Size, 7 1/2 in Flange Dia, 6 in Overall Lg, Steel with EPDM Bulb

UPC: | Harmonization / Schedule B : 4016.99.6050

Country of Origin: China | Shipping Weight: 10.65 lbs

$553.87 - $553.87
$553.87
$553.87 - $553.87
$553.87

Expansion Joint, Bolt Circle Diameter 6 in, Bolt Hole Size 3/4 in, Bolt Hole Threading Unthreaded, Burst Pressure 600 psi, Compression Distance 1 3/4 in, Connection Type Flanged, Expansion Distance 3/4 in, Expansion Joint Type Single Bulb, Features Metal Collar Cast into Retaining Ring Molded Integral Flange, Flange Diameter 7 1/2 in, Flange Material Steel, Joint Material EPDM

Type Wide Arch
Material EPDM
Bolt Holes 4
Connection Flanged
Max. Pressure 150 psi
Standards ANSI
Vacuum 15 In Hg At 72 Degrees F
Pipe Fitting Material EPDM
Reinforcement Material Metal
Minimum Operating Temperature -50 Degrees F
Seal Material EPDM
Bolt Hole Threading Unthreaded
Maximum Operating Temperature 240 Degrees F
Resistance Properties Abrasion Resistant, Heat Resistant, Oil Resistant
Offset Distance 3/4 in
Expansion Joint Type Single Bulb
Expansion Distance 3/4 in
Maximum Vacuum Pressure 15 in Hg
Connection Type Flanged
Flange Material Steel
Maximum Operating Pressure 150 psi
Compression Distance 1 3/4 in
For Flange Type ANSI Class 125, ANSI Class 150
Joint Material EPDM
Features Metal Collar Cast into Retaining Ring, Molded Integral Flange
Burst Pressure 600 psi
Number of Bolt Holes 4
Maximum Off-Center Angle 30 Degrees
Temp. Range -50 to 240 Degrees F
Country of Origin China
