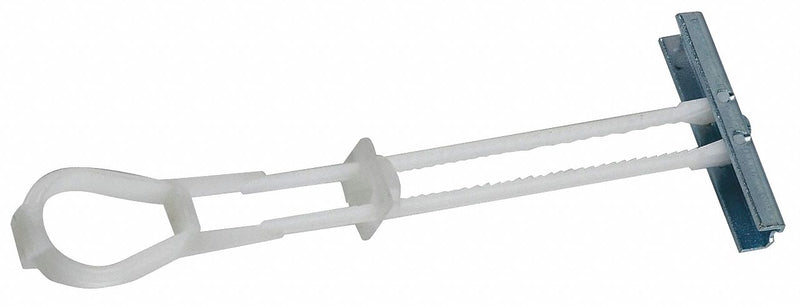

Approved Vendor U63266.037.0001 Channel Toggle Anchor, 3/4 in Dia, 6 in Overall Lg, 3/8"-16 Thread Size, Steel, Zinc Plated, 10 PK

Approved Vendor U63266.037.0001 Channel Toggle Anchor, 3/4 in Dia, 6 in Overall Lg, 3/8"-16 Thread Size, Steel, Zinc Plated, 10 PK

UPC: 190735827666 | Harmonization / Schedule B : 7318.19.0000

Country of Origin: | Shipping Weight: 1.35 lbs

$28.92 - $28.92
$28.92
$28.92 - $28.92
$28.92

Channel Toggle Anchor, Toggle Anchor Type Toggle Bolt Anchor, System of Measurement Inch, Anchor Diameter 3/4 in, Thread Size 3/8 In.-16, Overall Length 6 in, Screw Size 3/8 in, Screw Length 3 in, Thread Length 2 3/4 in, Drive Type Combination Slotted/Phillips, Head Diameter 0.63 in, Head Height 0.25 in, Usable Length 2 1/2 in, Wing Span 2 in, Material Steel, Finish Zinc Plated, Color Blue/White, Drill Bit Size 3/4 in

Anchor Diameter 3/4"
Anchor Length 2-3/4"
Thread Size 3/8"-16
Drill Bit Size 3/4"
Minimum Material Thickness 3-3/8"
Usable Length 2 1/2 in
Head Height 0.25 in
Thread Length 2 3/4 in
Size 3/8 in
Screw Size 3/8 in
Head Diameter 0.63 in
Maximum Material Thickness 3 5/8 in
Overall Length 6 in
Bolt Size 3/8 in
Wire Rope Length 6 in
Screw Length 3 in
Body Length 6 in
CAD Available Yes
Compatible Material Block, Brick, Drywall, Plaster, Wood
Material Steel
Drive Type Combination Phillips/Slotted
Tension Strength (1/2 in Drywall) 240 lbs
Toggle Bolt Type Channel Toggle Anchor
Wing Span 2 in
Grip Range 3/8 to 3-5/8 in
Color Blue/White
Minimum Clearance Behind Wall 3 in
Toggle Anchor Type Toggle Bolt Anchor
Minimum Ultimate Tension Strength 240 lb
Thread Type Coarse
Finish Zinc Plated
Manufacturer Location Globally Sourced
Series Wall-Dog
Material Grade/Class Grade 4.8
Pack Size Small Pack
Thread Direction Right Hand and Left Hand
Removable Removable
Minimum Ultimate Shear Strength 280 lb
Shear Strength (1/2 in Drywall) 280 lb
System of Measurement Inch
Maximum Ultimate Tension Strength 800 lb
Maximum Ultimate Shear Strength 1,200 lb
Country of Origin Multiple
