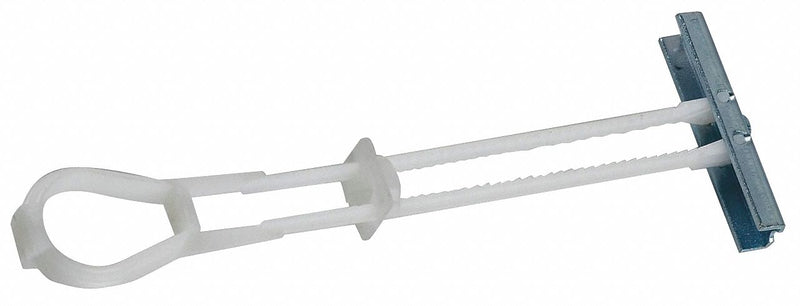

Approved Vendor U63266.031.0001 Channel Toggle Anchor, 3/4 in Dia, 6 in Overall Lg, 5/16"-18 Thread Size, Steel, Zinc Plated, 10 PK

Approved Vendor U63266.031.0001 Channel Toggle Anchor, 3/4 in Dia, 6 in Overall Lg, 5/16"-18 Thread Size, Steel, Zinc Plated, 10 PK

UPC: 190735827642 | Harmonization / Schedule B : 7318.19.0000

Country of Origin: | Shipping Weight: 1.125 lbs

$27.97 - $27.97
$27.97
$27.97 - $27.97
$27.97

Channel Toggle Anchor, Toggle Anchor Type Toggle Bolt Anchor, System of Measurement Inch, Anchor Diameter 3/4 in, Thread Size 5/16 In.-18, Overall Length 6 in, Screw Size 5/16 in, Screw Length 3 in, Thread Length 2 3/4 in, Drive Type Combination Slotted/Phillips, Head Diameter 0.5 in, Head Height 0.2 in, Usable Length 2 1/2 in, Wing Span 2 in, Material Steel, Finish Zinc Plated, Color Blue/White, Drill Bit Size 3/4 in

Anchor Diameter 3/4"
Anchor Length 2-3/4"
Thread Size 5/16"-18
Drill Bit Size 3/4"
Minimum Material Thickness 3-3/8"
Usable Length 2 1/2 in
Head Height 0.2 in
Thread Length 2 3/4 in
Size 5/16 in
Overall Length 6 in
Head Diameter 0.5 in
Screw Size 5/16 in
Maximum Material Thickness 3 5/8 in
Bolt Size 5/16 in
Body Length 6 in
Wire Rope Length 6 in
Screw Length 3 in
CAD Available Yes
Compatible Material Block, Brick, Drywall, Plaster, Wood
Material Steel
Drive Type Combination Phillips/Slotted
Tension Strength (1/2 in Drywall) 240 lbs
Toggle Bolt Type Channel Toggle Anchor
Wing Span 2 in
Grip Range 3/8 to 3-5/8 in
Removable Removable
Material Grade/Class Grade 4.8
Thread Direction Right Hand and Left Hand
System of Measurement Inch
Shear Strength (1/2 in Drywall) 280 lb
Thread Type Coarse
Minimum Clearance Behind Wall 3 in
Maximum Ultimate Tension Strength 800 lb
Manufacturer Location Globally Sourced
Pack Size Small Pack
Minimum Ultimate Shear Strength 280 lb
Minimum Ultimate Tension Strength 240 lb
Maximum Ultimate Shear Strength 1,200 lb
Color Blue/White
Finish Zinc Plated
Series Wall-Dog
Toggle Anchor Type Toggle Bolt Anchor
Country of Origin Multiple
