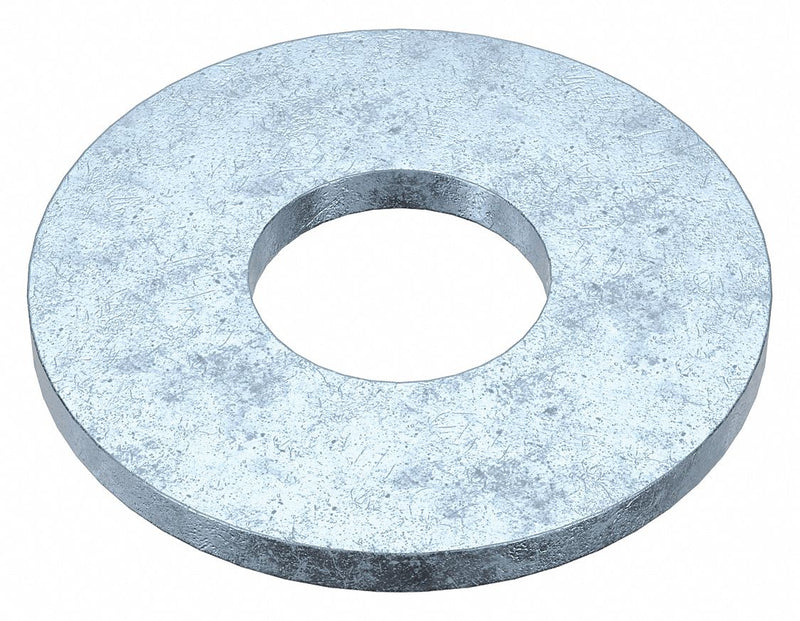

Approved Vendor U38400.075.0004 Washer, Case Hardened, Zinc Plated, Steel, 3/4 in Screw Sz, 0.812 in In Dia, 2 in Out Dia, 20 PK

Approved Vendor U38400.075.0004 Washer, Case Hardened, Zinc Plated, Steel, 3/4 in Screw Sz, 0.812 in In Dia, 2 in Out Dia, 20 PK

UPC: | Harmonization / Schedule B : 7318.22.0000

Country of Origin: | Shipping Weight: 2.284 lbs

$16.82 - $16.82
$16.82
$16.82 - $16.82
$16.82

USS Washer, Flat Washer Type USS, Dimensional Standards ASME B18.21.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 3/4 in, Inside Diameter 0.812 in, Outside Diameter 2 in, Maximum Thickness 0.177 in, System of Measurement Inch, Minimum Thickness 0.122 in, Color Silver, Inside Diameter Tolerance 0.806-0.783, Made in North America Not Made in North America, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated

For Screw Size 3/4"
Outside Diameter 2 in
Minimum Thickness 0.156 in
Maximum Thickness 0.156 in
Inside Diameter 0.813 in
Outside Diameter Tolerance 1.993-1.97
Inside Diameter Tolerance 0.806-0.783
CAD Available Yes
Material Steel
Finish Zinc Plated
Standards ASME B18.22.1
System of Measurement Inch
Rockwell Hardness 140HV
Thickness Tolerance 0.127-0.185
Color Silver
Type USS Flat Washer
Minimum Temperature -58 Degrees C
Material Quality Standards Not Rated
Maximum Temperature 350 Degrees C
RoHS Compliant RoHS Compliant
Made in North America Not Made in North America
Manufacturer Location Globally Sourced
Removable Removable
Pack Size Small Pack
Dimensional Standards ASME B18.21.1
REACH Compliant REACH Compliant
Material Grade/Class Case Hardened
Hardness 140 HV
Country of Origin Multiple
