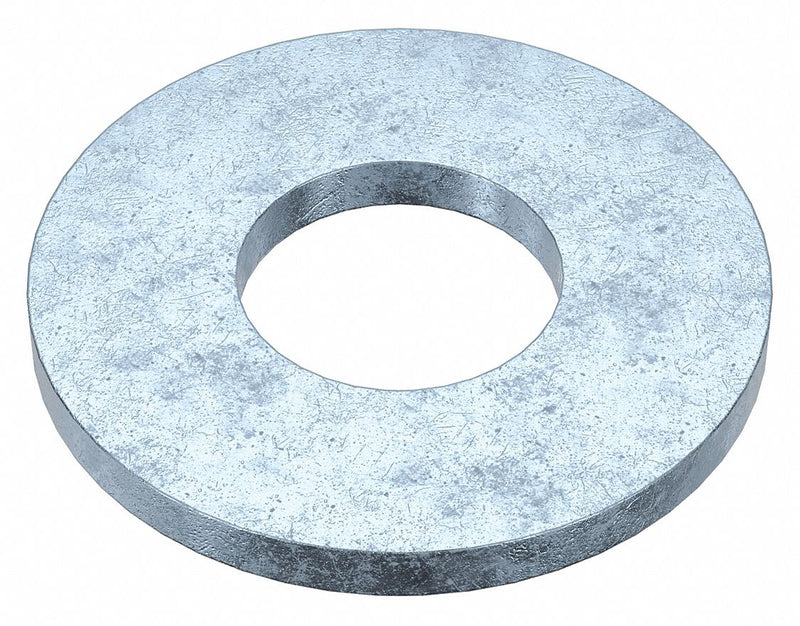

Approved Vendor U38210.025.0125 Large O.D. Oversized Washer, Case Hardened, Zinc Plated, Steel, 1/4 in Screw Sz, 100 PK

Approved Vendor U38210.025.0125 Large O.D. Oversized Washer, Case Hardened, Zinc Plated, Steel, 1/4 in Screw Sz, 100 PK

UPC: 096653071429 | Harmonization / Schedule B : 7318.22.0000

Country of Origin: | Shipping Weight: 1.411 lbs

$14.16 - $14.16
$14.16
$14.16 - $14.16
$14.16

Large O.D. Oversized Washer, Flat Washer Type Oversized, Dimensional Standards ASME B18.21.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 1/4 in, Inside Diameter 0.285 in, Outside Diameter 1 9/32 in, Maximum Thickness 5/64 in, System of Measurement Inch, Minimum Thickness 3/64 in, Color Silver, Inside Diameter Tolerance 0,275-0,295, Made in North America Not Made in North America, Manufacturer Location Globally Sourced

For Screw Size 1/4"
Outside Diameter 1-1/4 in
Minimum Thickness 0.065 in
Maximum Thickness 0.065 in
Inside Diameter 0.281 in
Outside Diameter Tolerance 1242-1279
Inside Diameter Tolerance 0,275-0,295
CAD Available Yes
Material Steel
Finish Zinc Plated
Washer Standards ASME B18.21.1
System of Measurement Inch
Thickness Tolerance 0.047 in to 0.080 in
For Use With Screws and Studs
Application Electrical Work, Plumbing, Sheet Metal
Flat Washer Type Fender Washer
Type Oversized Flat Washer
Color Silver
Rockwell Hardness 140HV
Dimensional Standards ASME B18.21.1
Removable Removable
Minimum Temperature -58 Degrees C
Pack Size Small Pack
REACH Compliant REACH Compliant
Made in North America Not Made in North America
Manufacturer Location Globally Sourced
Maximum Temperature 350 Degrees C
Material Quality Standards Not Rated
Material Grade/Class Case Hardened
RoHS Compliant RoHS Compliant
Hardness 140 HV
Washer Type Large Outside Diameter
Country of Origin Multiple
