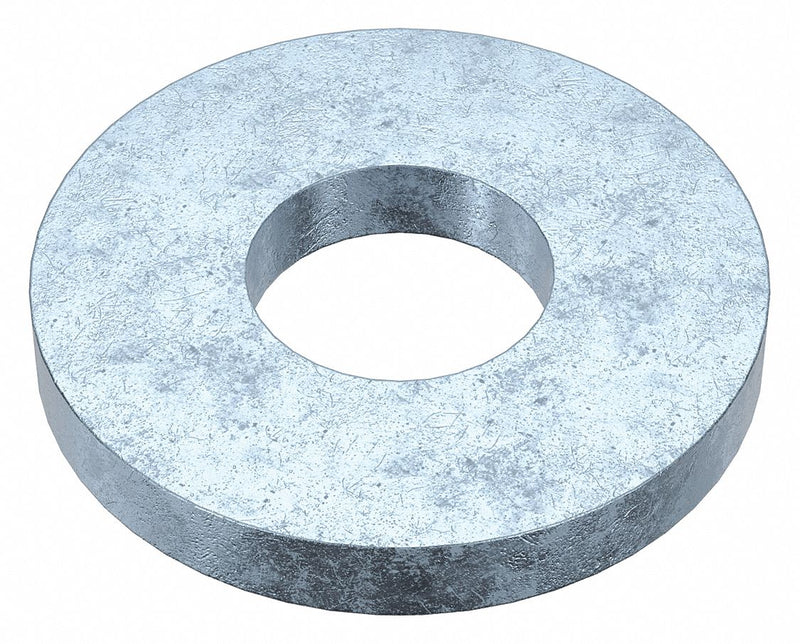

Approved Vendor U38210.025.0100 Large O.D. Oversized Washer, Case Hardened, Zinc Plated, Steel, 1/4 in Screw Sz, 100 PK

Approved Vendor U38210.025.0100 Large O.D. Oversized Washer, Case Hardened, Zinc Plated, Steel, 1/4 in Screw Sz, 100 PK

UPC: 096653071368 | Harmonization / Schedule B : 7318.22.0000

Country of Origin: | Shipping Weight: 0.95 lbs

$10.39 - $10.39
$10.39
$10.39 - $10.39
$10.39

Large O.D. Oversized Washer, Flat Washer Type Oversized, Dimensional Standards ASME B18.21.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 1/4 in, Inside Diameter 0.285 in, Outside Diameter 1 1/32 in, Maximum Thickness 5/64 in, System of Measurement Inch, Minimum Thickness 3/64 in, Color Silver, Inside Diameter Tolerance 0,275-0,295, Made in North America Not Made in North America, Manufacturer Location Globally Sourced

For Screw Size 1/4"
Outside Diameter 1 in
Minimum Thickness 0.065 in
Maximum Thickness 0.065 in
Inside Diameter 0.281 in
Inside Diameter Tolerance 0,275-0,295
Outside Diameter Tolerance 0,992-1029
CAD Available Yes
Material Steel
Finish Zinc Plated
Washer Standards ASME B18.21.1
System of Measurement Inch
Thickness Tolerance 0.047 in to 0.080 in
Flat Washer Type Fender Washer
Application Electrical Work, Plumbing, Sheet Metal
For Use With Screws and Studs
Type Oversized Flat Washer
Rockwell Hardness 140HV
Color Silver
Maximum Temperature 350 Degrees C
Dimensional Standards ASME B18.21.1
Material Grade/Class Case Hardened
Pack Size Small Pack
Removable Removable
Made in North America Not Made in North America
Material Quality Standards Not Rated
Manufacturer Location Globally Sourced
REACH Compliant REACH Compliant
Minimum Temperature -58 Degrees C
RoHS Compliant RoHS Compliant
Washer Type Large Outside Diameter
Hardness 140 HV
Country of Origin Multiple
