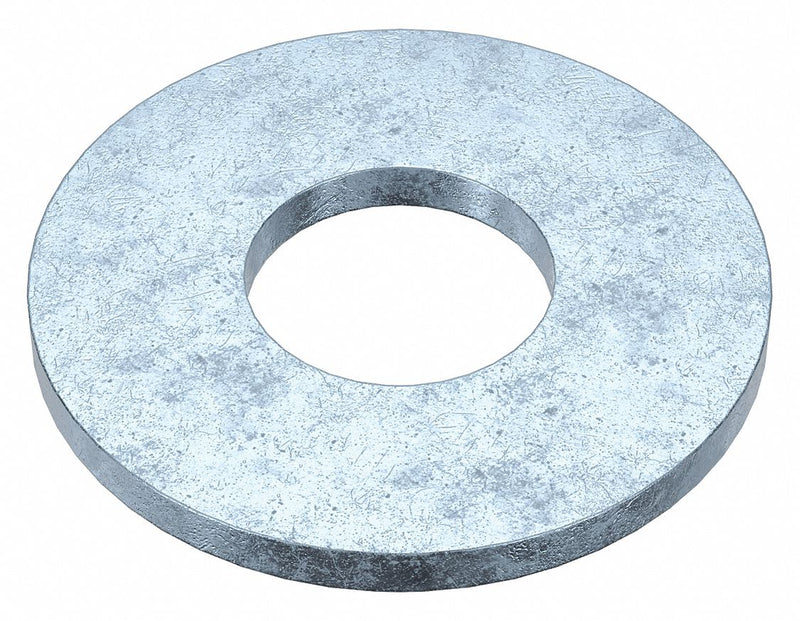

Approved Vendor U38130.087.0001 Washer, Case Hardened, Zinc Plated, Steel, 7/8 in Screw Sz, 0.938 in In Dia, 10 PK

Approved Vendor U38130.087.0001 Washer, Case Hardened, Zinc Plated, Steel, 7/8 in Screw Sz, 0.938 in In Dia, 10 PK

UPC: | Harmonization / Schedule B : 7318.22.0000

Country of Origin: | Shipping Weight: 1.572 lbs

$9.36 - $9.36
$9.36
$9.36 - $9.36
$9.36

USS Washer, Flat Washer Type Oversized, Dimensional Standards ASME B18.21.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 7/8 in, Inside Diameter 0.938 in, Outside Diameter 2 1/4 in, Maximum Thickness 0.192 in, System of Measurement Inch, Minimum Thickness 0.136 in, Color Silver, Inside Diameter Tolerance 0.931-0.968, Made in North America Not Made in North America, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated

For Screw Size 7/8"
Outside Diameter 2 1/4 in
Minimum Thickness 0.165 in
Maximum Thickness 0.165 in
Inside Diameter 0.938 in
Outside Diameter Tolerance 2.243-2.28
Inside Diameter Tolerance 0.931-0.968
CAD Available Yes
Material Steel
Finish Zinc Plated
Standards ASME B18.21.1
System of Measurement Inch
Color Silver
Thickness Tolerance 0.136-0.192
Rockwell Hardness 140HV
Type USS Flat Washer
Minimum Temperature -58 Degrees C
Maximum Temperature 350 Degrees C
Removable Removable
Dimensional Standards ASME B18.21.1
Pack Size Small Pack
Manufacturer Location Globally Sourced
RoHS Compliant RoHS Compliant
Made in North America Not Made in North America
Material Grade/Class Case Hardened
REACH Compliant REACH Compliant
Material Quality Standards Not Rated
Washer Type Large Outside Diameter
Hardness 140 HV
Country of Origin Multiple
