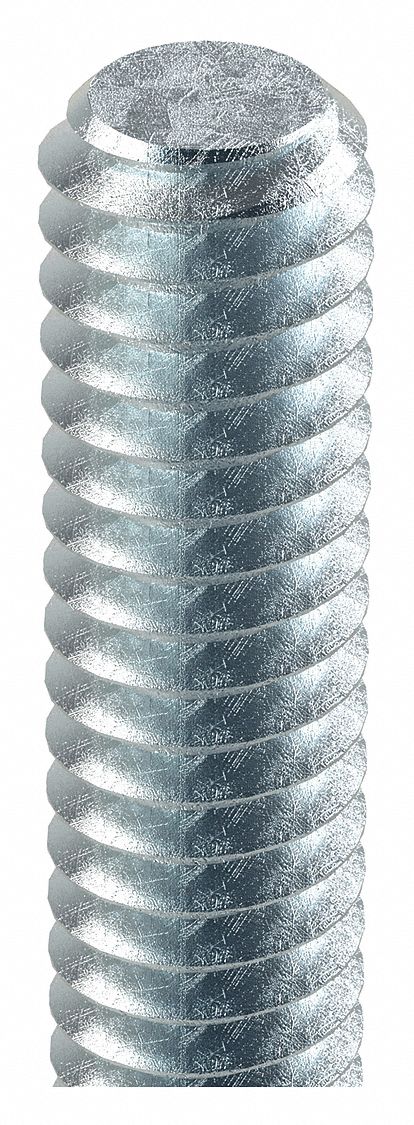

Approved Vendor U20300.100.3600 Fully Threaded Rod, 1"-8 Thread Size, 3 ft Lg, Steel, Grade A, Zinc-Plated

Approved Vendor U20300.100.3600 Fully Threaded Rod, 1"-8 Thread Size, 3 ft Lg, Steel, Grade A, Zinc-Plated

UPC: | Harmonization / Schedule B : 7318.15.5051

Country of Origin: | Shipping Weight: 6.614 lbs

$59.12 - $59.12
$59.12
$59.12 - $59.12
$59.12

Fully Threaded Rod, Material Grade/Class Grade A, Material Steel, Finish Zinc-Plated, Thread Size 1 In.-8, Overall Length 3 ft, Tensile Strength 60,000 psi, System of Measurement Inch, Thread Direction Right Hand, End Type Straight Cut, Dimensional Standards ASME B18.31.3, Color Silver, Made in North America Yes, Manufacturer Location Made in USA, Material Fabrication Roll Thread, Maximum Temperature 302 Degrees F, Minimum Temperature -58 Degrees F, Minimum Yield Strength 45,000 psi

Thread Size 1"-8
Overall Length 3 ft
Length 3 ft
For Screw Size 1 in
Wire Rope Length 3 ft
CAD Available Yes
Thread Coverage Fully
Material Steel
Material Grade/Class Grade A
Thread Fit 1A
Thread Type Coarse
Tensile Strength 60,000 psi
Minimum Yield Strength 45,000 psi
System of Measurement Inch
Thread Direction Right Hand
Finish Zinc-Plated
Meets/Exceeds ASME B18.31.3
Rockwell Hardness B80-B90
Temp. Range Not Rated
Threaded Rod Finish Zinc Plated
RoHS Compliant Yes
End Type Straight Cut
Removable No
Color Silver
Maximum Temperature 302 Degrees F
Dimensional Standards ASME B18.31.3
Minimum Temperature -58 Degrees F
REACH Compliant Yes
Manufacturer Location Made in USA
Material Fabrication Roll Thread
Made in North America Yes
Threaded Rod Material Grade Grade A
Thread Class 1A
Threaded Rod Material Steel
Threaded Rod Thread Type UNC
Temperature - Maximum 302 Degrees F
Temperature - Minimum -58 Degrees F
Yield Strength - Minimum 45,000 psi
Country of Origin Multiple
