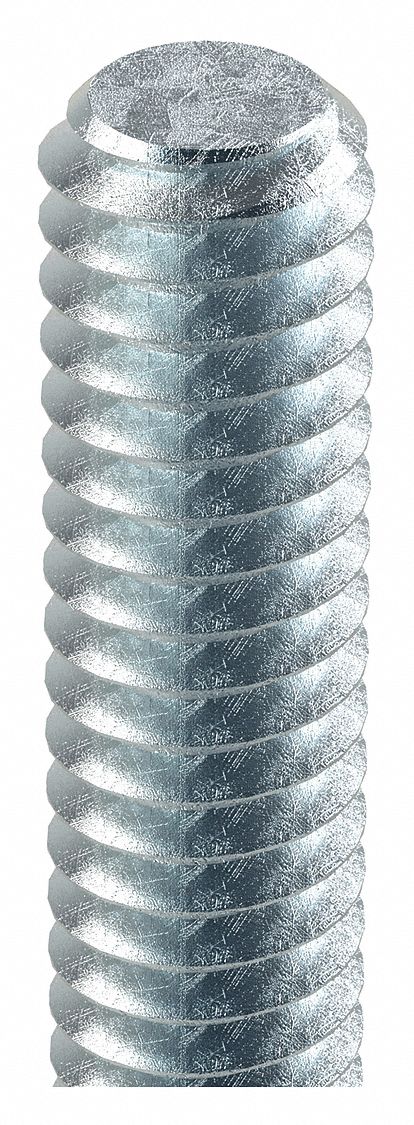

Approved Vendor U20300.075.1200 Fully Threaded Rod, 3/4"-10 Thread Size, 12 in Lg, Steel, Grade A, Zinc-Plated

Approved Vendor U20300.075.1200 Fully Threaded Rod, 3/4"-10 Thread Size, 12 in Lg, Steel, Grade A, Zinc-Plated

UPC: | Harmonization / Schedule B : 7318.15.5030

Country of Origin: | Shipping Weight: 1.235 lbs

$6.72 - $6.72
$6.72
$6.72 - $6.72
$6.72

Fully Threaded Rod, Material Grade/Class Grade A, Material Steel, Finish Zinc-Plated, Thread Size 3/4 In.-10, Overall Length 12 in, Tensile Strength 60,000 psi, System of Measurement Inch, Thread Direction Right Hand, End Type Straight Cut, Dimensional Standards ASME B18.31.3, Includes Nuts No, Color Silver, Made in North America Yes, Manufacturer Location Made in USA, Material Fabrication Roll Thread, Maximum Temperature 302 Degrees F

Thread Size 3/4"-10
Overall Length 12 in
Length 1 ft
For Screw Size 3/4 in
Wire Rope Length 12 in
CAD Available Yes
Thread Coverage Fully
Material Steel
Material Grade/Class Grade A
Thread Fit 1A
Thread Type Coarse
Tensile Strength 60,000 psi
Minimum Yield Strength 45,000 psi
System of Measurement Inch
Thread Direction Right Hand
Finish Zinc-Plated
Meets/Exceeds ASME B18.31.3
Threaded Rod Finish Zinc Plated
Temp. Range -58 Degrees to 302 Degrees F
Rockwell Hardness B80-B90
Color Silver
Material Fabrication Roll Thread
Maximum Temperature 302 Degrees F
Removable No
Includes Nuts No
Manufacturer Location Made in USA
Made in North America Yes
End Type Straight Cut
Dimensional Standards ASME B18.31.3
REACH Compliant Yes
RoHS Compliant Yes
Minimum Temperature -58 Degrees F
Thread Class 1A
Threaded Rod Material Grade Grade A
Threaded Rod Thread Type UNC
Threaded Rod Material Steel
Yield Strength - Minimum 45,000 psi
Temperature - Maximum 302 Degrees F
Temperature - Minimum -58 Degrees F
Country of Origin Multiple
