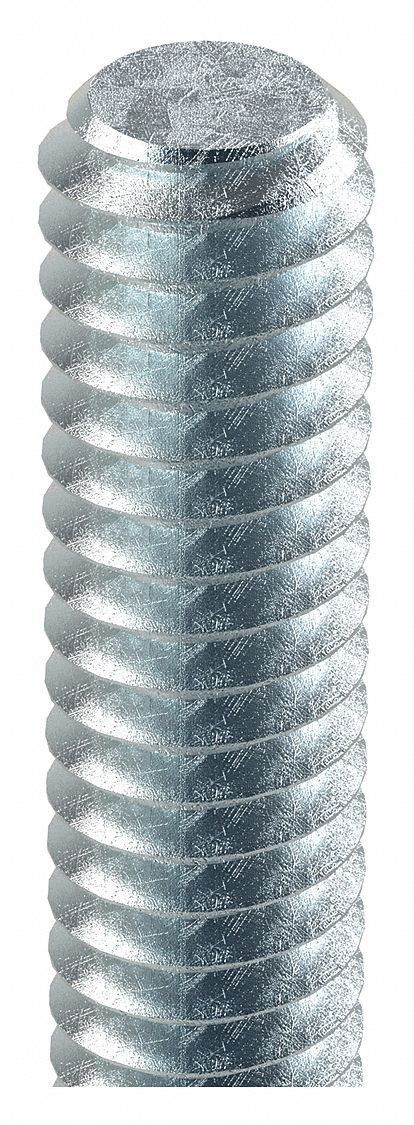

Approved Vendor U20300.050.8888 Fully Threaded Rod, 1/2"-13 Thread Size, 10 ft Lg, Steel, Grade A, Zinc-Plated

Approved Vendor U20300.050.8888 Fully Threaded Rod, 1/2"-13 Thread Size, 10 ft Lg, Steel, Grade A, Zinc-Plated

UPC: | Harmonization / Schedule B : 7318.15.5030

Country of Origin: | Shipping Weight: 5.307 lbs

$280.39 - $280.39
$280.39
$280.39 - $280.39
$280.39

Fully Threaded Rod, Material Grade/Class Grade A, Material Steel, Finish Zinc-Plated, Thread Size 1/2 In.-13, Overall Length 10 ft, Tensile Strength 60,000 psi, System of Measurement Inch, Thread Direction Right Hand, End Type Straight Cut, Dimensional Standards ASME B18.31.3, Color Silver, Made in North America Yes, Manufacturer Location Made in USA, Material Fabrication Roll Thread, Maximum Temperature 302 Degrees F, Minimum Temperature -58 Degrees F

Thread Size 1/2"-13
Overall Length 10 ft
Length 10 ft
For Screw Size 1/2 in
Wire Rope Length 10 ft
CAD Available Yes
Thread Coverage Fully
Material Steel
Material Grade/Class Grade A
Thread Fit 1A
Thread Type Coarse
Tensile Strength 60,000 psi
Minimum Yield Strength 45,000 psi
System of Measurement Inch
Thread Direction Right Hand
Finish Zinc-Plated
Meets/Exceeds ASME B18.31.3
Temp. Range Not Rated
Threaded Rod Finish Zinc Plated
Rockwell Hardness B80-B90
Dimensional Standards ASME B18.31.3
Color Silver
Removable No
REACH Compliant Yes
Made in North America Yes
End Type Straight Cut
Maximum Temperature 302 Degrees F
Manufacturer Location Made in USA
Minimum Temperature -58 Degrees F
RoHS Compliant Yes
Material Fabrication Roll Thread
Threaded Rod Material Steel
Threaded Rod Thread Type UNC
Threaded Rod Material Grade Grade A
Thread Class 1A
Temperature - Maximum 302 Degrees F
Temperature - Minimum -58 Degrees F
Yield Strength - Minimum 45,000 psi
Country of Origin Multiple
