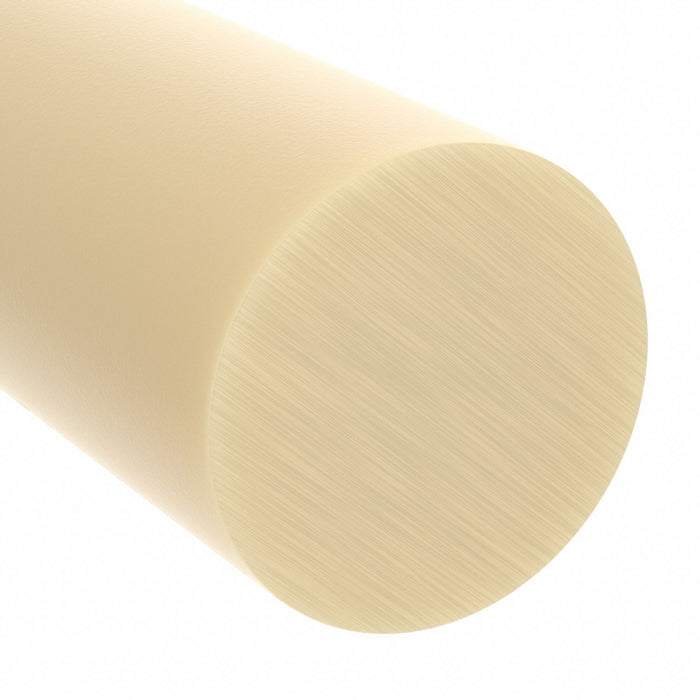

Approved Vendor Glass-Filled PTFE Rod, 1 in Dia, 12 in Lg

Approved Vendor PR-PTFE-GF-22 PTFE Rod, Glass-Filled, 1 in Dia, 12 in Lg, Off-White

UPC: 193005102920 | Harmonization / Schedule B : 3916.10.0000

Country of Origin: United States | Shipping Weight: 0.52 lbs

$103.37 - $103.37
$103.37
$103.37 - $103.37
$103.37

PTFE Rod, PTFE, Grade Glass-Filled, Plastic Length 12 in, Plastic Diameter 1 in, Off-White, Plastic Clarity Opaque, Minimum Temperature -350 Degrees F, Maximum Temperature 500 Degrees F, Tensile Strength 1,000 psi, Impact Strength Not Rated, Friction Coefficient 0.12, Water Absorption 0.01 Percent, Plastic Density 0.08 lb/cu in, Plastic Hardness 55D

Material PTFE
Color Off-White
Tensile Strength (PSI) 1,000 psi
Type Glass-Filled
Max. Temp. (F) 500 Degrees F
Min. Temp. (F) -350 Degrees F
Standards UL 94 V-0
Impact Strength (Lbs.) Not Rated
Friction Coefficient 0.12
Grade Glass-Filled
Water Absorption 0.01 %
Tensile Strength 1,000 psi
Plastic Hardness 55D
Temperature Range -350 Degrees to 500 Degrees F
Shape Rod
Impact Strength Rating Good
Water Absorption Rating Excellent
Plastic Density 0.08 lb/cu in
Impact Strength Not Rated
Machinability 100 %
Wear Factor Excellent
Friction Rating Very Slippery
Minimum Temperature -350 Degrees F
UV Resistant Yes
Maximum Temperature 500 Degrees F
Tensile Strength Rating Poor
Corrosion and Chemical Resistance Excellent
Plastic Clarity Opaque
Plastic Hardness Rating Medium Soft
Weight 0.516 lb
Metal Detectable Not Metal Detectable
Flexural Modulus 620 MPa
Wear Rate Not Rated
Coefficient of Thermal Expansion 8 x 10^-5 K^-1
Filler Material Glass
Shore Hardness 55 Shore D
Dielectric Strength Not Rated
Static-Resistant Not Static-Resistant
Scratch-Resistant Not Scratch-Resistant
FDA Compliance Not FDA Compliant
Rockwell Hardness 60 HRR
UV-Resistant UV-Resistant
Country of Origin United States
