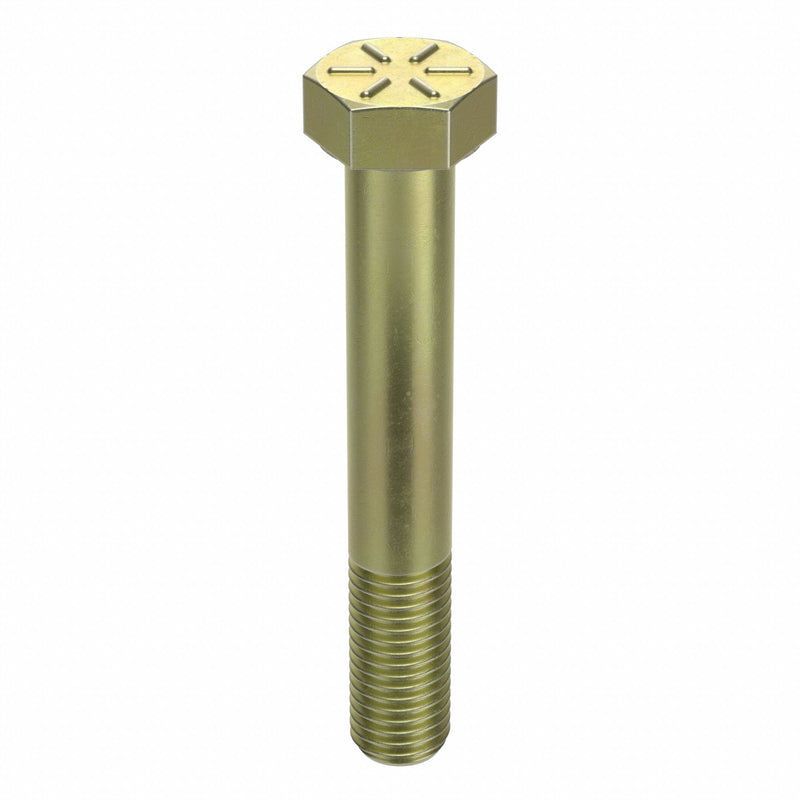

Approved Vendor N04104.062.0400 Hex Head Cap Screw, Steel, Grade 8, Zinc Yellow, 5/8"-11, Coarse, 4 in lg, Made in USA*, Inch, 5 PK

UPC: 190735964958 | Harmonization / Schedule B : 7318.15.8066

Country of Origin: United States | Shipping Weight: 2.006 lbs

Original price $22.44 - Original price $22.44
Original price
$22.44
$22.44 - $22.44
Current price $22.44

The ZORO SELECT - N04104.062.0400 is a Hex Head Cap Screw, a type of fastener with a hexagonal-shaped head used in various industrial applications to securely join materials together. This screw adheres to the ASME B18.2.1 dimensional standards and requires an external hex drive for installation or removal. Fastener Length: The screw has a length of 4 inches and is designed to be inserted into materials. Finish: The product features a Zinc Yellow finish which may contribute to durability, corrosion resistance and aesthetic appeal. Globally Sourced: This product is sourced from various international manufacturers. Material: Constructed with steel material that could influence its strength, durability and potential application uses. Material Grade/Class: Adheres to the Grade 8 standard which suggests certain levels of strength, hardness and resistance properties. Suitability depends on specific application requirements. Tensile Strength:The product has a tensile strength rating of up to 150,000 psi. Durability under stress conditions varies based on usage circumstances. Thread Direction & Size:The right-hand thread direction is designed to tighten in a clockwise manner; Thread size is specified as 5/8"-11. Compatibility with nuts or holes depends on their respective sizes."

Thread Size 5/8"-11
Fastener Length 4 in
Head Width 15/16 in
Head Height 25/64 in
Min. Thread Length 1 1/2 in
Overall Length 4 in
Screw Size 5/8 in
Minimum Thread Length 1 1/2 in
Wire Rope Length 4 in
Length 4 in
System of Measurement Inch
Drive External Hex
Material Grade/Class Grade 8
Material Steel
Finish Zinc Yellow
Thread Style Partially Threaded
Thread Direction Right Hand
Standards SAE J429
Thread Type Coarse
Tensile Strength 150,000 psi
Temp. Range -58 Degrees to 302 Degrees F
Proof Load 120,000 psi
Rockwell Hardness HRC33
Maximum Temperature 302 Degrees F
Dimensional Standards ASME B18.2.1
Thread Fit 2A
Minimum Temperature -58 Degrees F
Globally Sourced Made in USA*
Threadlocker Minimum Temperature 5/8"-11
Manufacturer Location Made in USA*
Material Quality Standards SAE J429
Fastener Industry Standards ASME B18.2.1
Type Hex Head Cap Screw
Temperature - Minimum -58 Degrees F
Temperature - Maximum 302 Degrees F
Drive Type External Hex
Head Type Hex
Country of Origin United States
