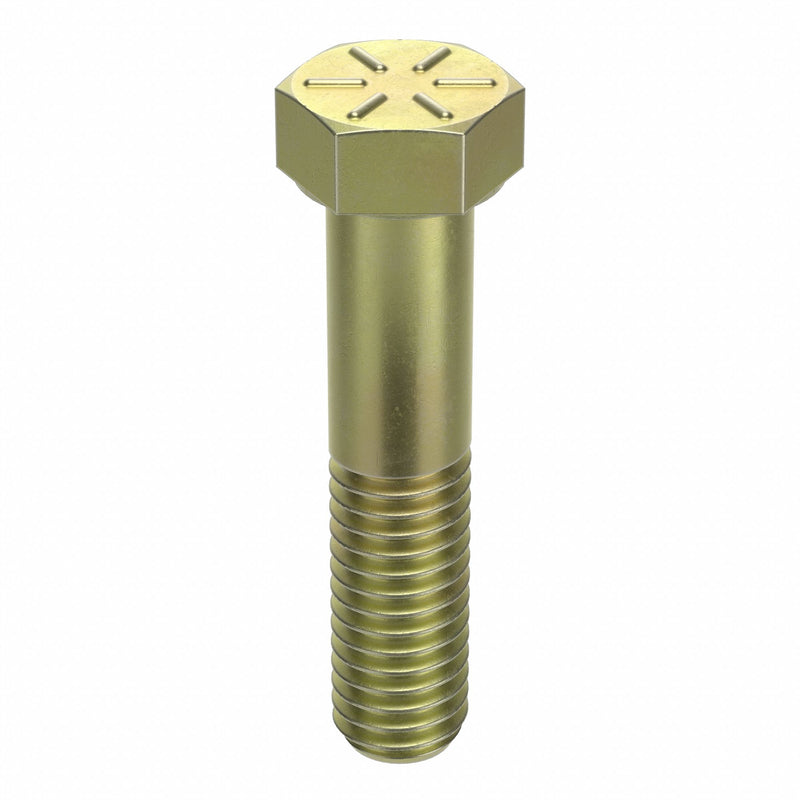

Approved Vendor N04104.037.0200 Hex Head Cap Screw, Steel, Grade 8, Zinc Yellow, 3/8"-16, Coarse, 2 in lg, Made in USA*, Inch, 25 PK

UPC: 190735965474 | Harmonization / Schedule B : 7318.15.8066

Country of Origin: United States | Shipping Weight: 1.786 lbs

Original price $21.19 - Original price $21.19
Original price
$21.19
$21.19 - $21.19
Current price $21.19

The ZORO SELECT - N04104.037.0200 is a Hex Head Cap Screw, a type of fastener characterized by its hexagonal-shaped head. Made from Grade 8 steel, this screw meets the ASME B18.2.1 dimensional standards and SAE J429 material quality standards for use in various industrial applications. Drive: The external hex drive requires a wrench or socket for installation or removal. Fastener Length: With a length of 2 inches, it measures the potential depth of insertion into a material. Finish: The zinc yellow finish is intended to provide increased durability, corrosion resistance and aesthetic appeal. Globally Sourced: Procured from international manufacturers offering diverse range of quality options. Material Grade/Class: Adheres to Grade 8 standard indicating strength and hardness properties suitable for industrial applications. Tensile Strength: Rated for up to 150,000 psi tensile stress before failure as per standard tests, suggesting its potential durability and suitability for certain applications.

Thread Size 3/8"-16
Fastener Length 2 in
Head Width 9/16 in
Min. Thread Length 1 in
Head Height 15/64 in
Overall Length 2 in
Screw Size 3/8 in
Minimum Thread Length 1 in
Wire Rope Length 2 in
Length 2 in
System of Measurement Inch
Drive External Hex
Material Grade/Class Grade 8
Material Steel
Finish Zinc Yellow
Thread Style Partially Threaded
Thread Direction Right Hand
Standards SAE J429
Temp. Range -58 Degrees to 302 Degrees F
Proof Load 120,000 psi
Tensile Strength 150,000 psi
Rockwell Hardness HRC33
Thread Type Coarse
Threadlocker Minimum Temperature 3/8"-16
Maximum Temperature 302 Degrees F
Thread Fit 2A
Dimensional Standards ASME B18.2.1
Minimum Temperature -58 Degrees F
Globally Sourced Made in USA*
Manufacturer Location Made in USA*
Material Quality Standards SAE J429
Fastener Industry Standards ASME B18.2.1
Type Hex Head Cap Screw
Temperature - Maximum 302 Degrees F
Drive Type External Hex
Temperature - Minimum -58 Degrees F
Head Type Hex
Country of Origin United States
