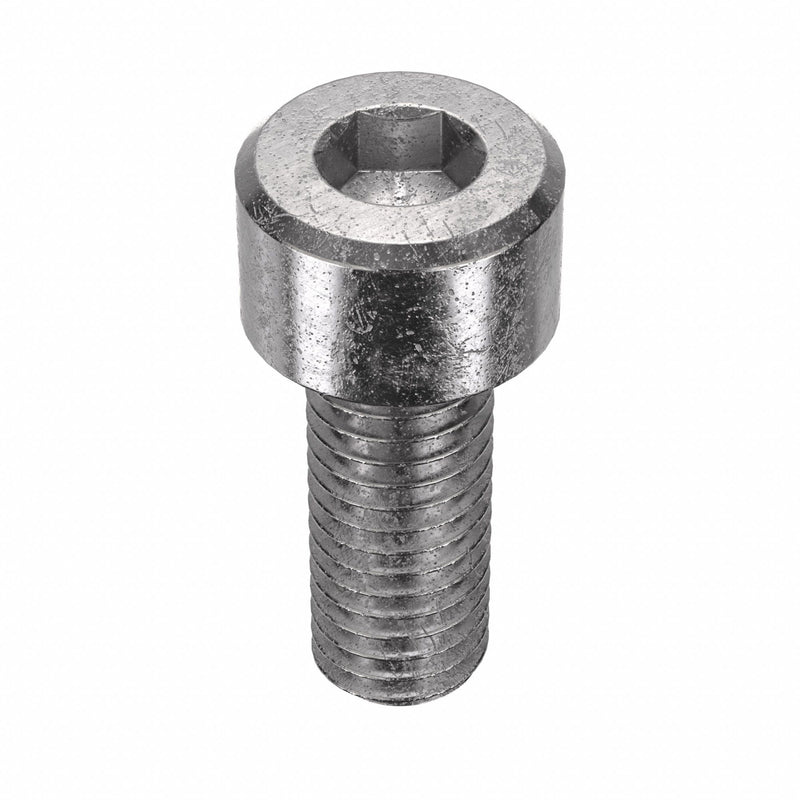

Approved Vendor M55050.080.0020 Standard Socket Head Cap Screw, M8x1.25, 20 mm Lg, Std, Plain, Stainless Steel, 316, Plain, 50 PK

Approved Vendor M55050.080.0020 Standard Socket Head Cap Screw, M8x1.25, 20 mm Lg, Std, Plain, Stainless Steel, 316, Plain, 50 PK

UPC: | Harmonization / Schedule B : 7318.15.8030

Country of Origin: | Shipping Weight: 1.477 lbs

$31.03 - $31.03
$31.03
$31.03 - $31.03
$31.03

Socket Head Cap Screw, Head Type Standard, System of Measurement Metric, Drive Type Socket, Drive Size 6 mm, Material Stainless Steel, Material Grade/Class 316, Finish Plain, Thread Size M8-1.25, Minimum Thread Length 20 mm, Fastener Length 20 mm, Head Height 8 mm, Head Diameter 13 mm, Pack Size Small Pack, Thread Style Fully Threaded, Color Silver, Dimensional Standards DIN 912

Thread Size M8-1.25
Screw Length 20 mm
Drive Size 6 mm
Thread Length 20 mm
Head Height 8 mm
Vented Hole Size Not Vented
Min. Thread Length 20 mm
Head Diameter 13 mm
Minimum Thread Length 20 mm
Minimum Head Height 7.64 mm
Maximum Head Height 8 mm
Dia./Thread Size M8-1.25
Length 20 mm
Head Dia. 13 mm
Fastener Length 20 mm
CAD Available Yes
Material 316 Stainless Steel
Finish Plain
Head Type Socket
Drive Type Hex
Tensile Strength 101,500 psi
Standards DIN 912
System of Measurement Metric
Fastener Thread Type Metric Coarse
Thread Direction Right Hand
Rockwell Hardness C39 to C44
Thread Style Fully Threaded
Thread Type Coarse
Proof Load 74,000 psi
Color Silver
Sealing Gasket No
Pack Size Small Pack
Non-Marring Tip No
Thread Fit 6G
Minimum Yield Strength 81,000 psi
Includes Washer No
Material Grade/Class 316
Minimum Temperature -50 Degrees F
Dimensional Standards DIN 912
Seal Material None
Head Texture Knurled
Resistance Properties Corrosion-Resistant
Manufacturer Location Globally Sourced
Thread Pitch 1.25 mm
Maximum Temperature 550 Degrees F
Fastener Industry Standards DIN 912
Screw Head Type Cylindrical
Fastener Finish Plain
Basic Material Stainless Steel
Min. Tensile Strength 700 N/sq mm
Screw Style Socket Head Cap Screw
Material Grade A4
Temperature - Maximum 550 Degrees F
Temperature - Minimum -50 Degrees F
Country of Origin Multiple
