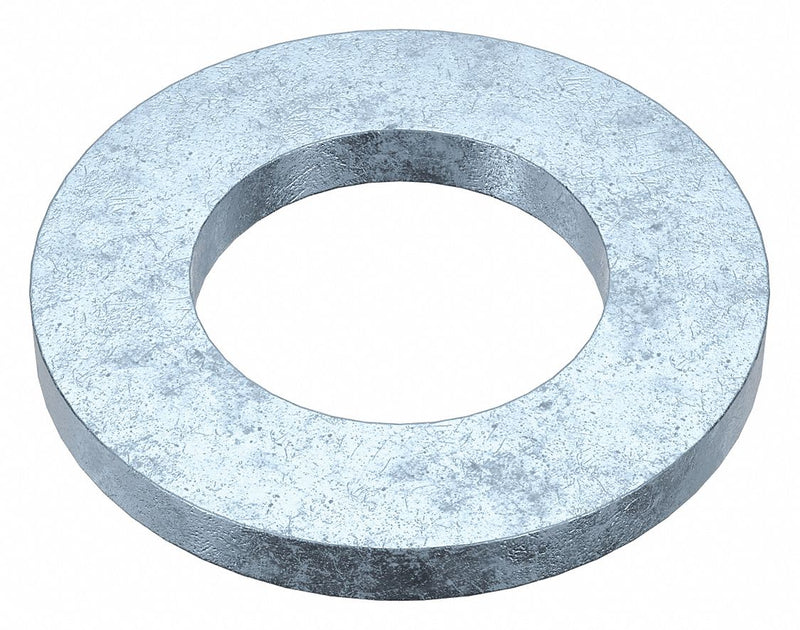

Approved Vendor M38130.160.0001 Flat Washer, Zinc Plated, Steel, M16 Screw Sz, 17.27 mm In Dia, 30 mm Out Dia, 25 PK

Approved Vendor M38130.160.0001 Flat Washer, Zinc Plated, Steel, M16 Screw Sz, 17.27 mm In Dia, 30 mm Out Dia, 25 PK

UPC: | Harmonization / Schedule B : 7318.22.0000

Country of Origin: | Shipping Weight: 0.551 lbs

$4.92 - $4.92
$4.92
$4.92 - $4.92
$4.92

Flat Washer, Flat Washer Type Standard, Dimensional Standards DIN 125-1A, Material Steel, Material Grade/Class Not Graded, Finish Zinc-Plated, For Screw Size M16, Inside Diameter 17.27 mm, Outside Diameter 30 mm, Maximum Thickness 3.3 mm, System of Measurement Metric, Minimum Thickness 2.7 mm, Color Silver, Inside Diameter Tolerance 0.669-0.68, Made in North America Not Made in North America, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated

For Screw Size M16
Outside Diameter 30 mm
Minimum Thickness 3 mm
Maximum Thickness 3 mm
Inside Diameter 17 mm
Inside Diameter Tolerance 0.669-0.68
Outside Diameter Tolerance 1.161-1.181
MFR # M38130.160.0001
Zoro # G5323604
UPC # -
Country of Origin Multiple
Material Steel
Finish Zinc Plated
Standards DIN 125-1A
System of Measurement Metric
Rockwell Hardness 140HV
Thickness Tolerance 0.106-0.13
Type Flat Washer
Color Silver
Pack Size Small Pack
Removable Removable
Material Quality Standards Not Rated
RoHS Compliant RoHS Compliant
Minimum Temperature -58 Degrees C
Manufacturer Location Globally Sourced
Material Grade/Class Not Graded
Made in North America Not Made in North America
Dimensional Standards DIN 125-1A
Maximum Temperature 350 Degrees C
REACH Compliant REACH Compliant
Hardness 140 HV
Country of Origin Varies (subject to change)
